Product Model
pun-8x1,25-ge
Selling Points

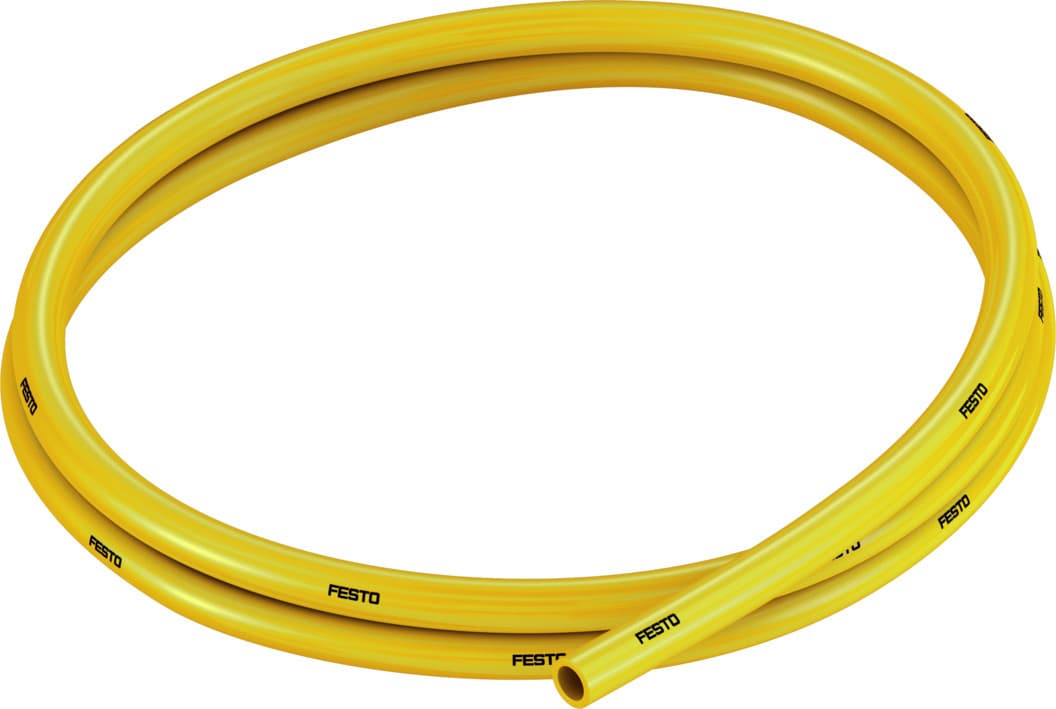

- 1The Festo PUN-8X1,25-GE plastic tubing features an outside diameter of 8 mm, ensuring a precise fit in various pneumatic systems.
- 2With a flow-relevant bending radius of 37 mm, this tubing is optimized for efficient air flow and minimal pressure loss.
- 3The inside diameter of 5.7 mm allows for smooth passage of compressed air, making it suitable for energy chains and pneumatic applications.
- 4The tubing is made from TPE-U (thermoplastic elastomer) with a Shore hardness of D 52 +/-3, ensuring durability and resistance to various temperatures.
- 5The PUN-8X1,25-GE is approved by the German Technical Control Board (TÜV) and meets international standards for operating pressure and fire resistance, ensuring safety and reliability in your pneumatic setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 8mm | Bending radius relevant for flow rate | 37mm |
Inside diameter | 5.7mm | Min. bending radius | 24mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0302kg/m | Pneumatic connection | For plug connection outside diameter 8 mm For barbed fitting, inside diameter 6 mm, with union nut For barbed fitting, inside diameter 6 mm |
Color | Yellow | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 178419 |
Specifications may be subject to change without notice
