Product Model
pun-8x1,25-gn
Selling Points

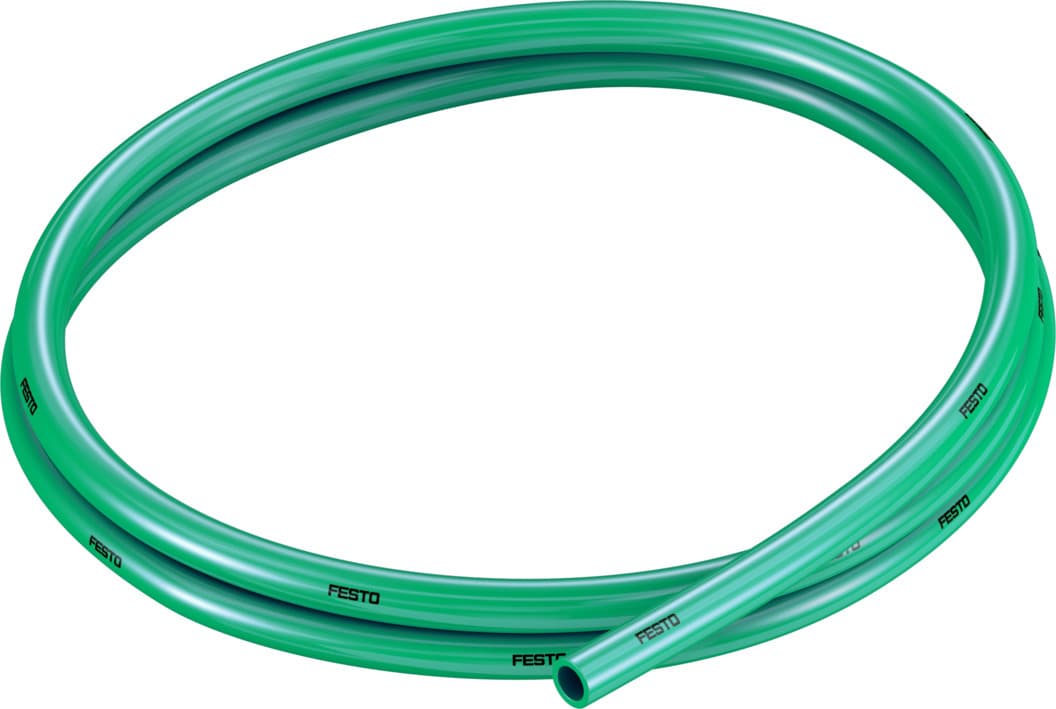

- 1The Festo PUN-8X1,25-GN plastic tubing features an 8mm outside diameter and a 37mm flow-relevant bending radius, making it perfect for pneumatic systems that require efficient fluid flow.
- 2With an inside diameter of 5.7mm and a minimum bending radius of 21mm, this tubing ensures smooth operation and durability in various applications.
- 3The PUN-8X1,25-GN is made from TPE-U (thermoplastic elastomer) material, which is ester-based and compliant with RoHS regulations, ensuring environmental sustainability.
- 4This tubing is suitable for use with compressed air to ISO 8573-1:2010 and can operate within a temperature range of -35°C to 60°C, making it versatile for different environments.
- 5The Festo PUN-8X1,25-GN plastic tubing is UL94 HB fire test material and VDMA24364-B2-L compliant, ensuring safety and reliability in critical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 8mm | Bending radius relevant for flow rate | 37mm |
Inside diameter | 5.7mm | Min. bending radius | 24mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0302kg/m | Pneumatic connection | For plug connection outside diameter 8 mm For barbed fitting, inside diameter 6 mm, with union nut For barbed fitting, inside diameter 6 mm |
Color | Green | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 178426 |
Specifications may be subject to change without notice
