Product Model

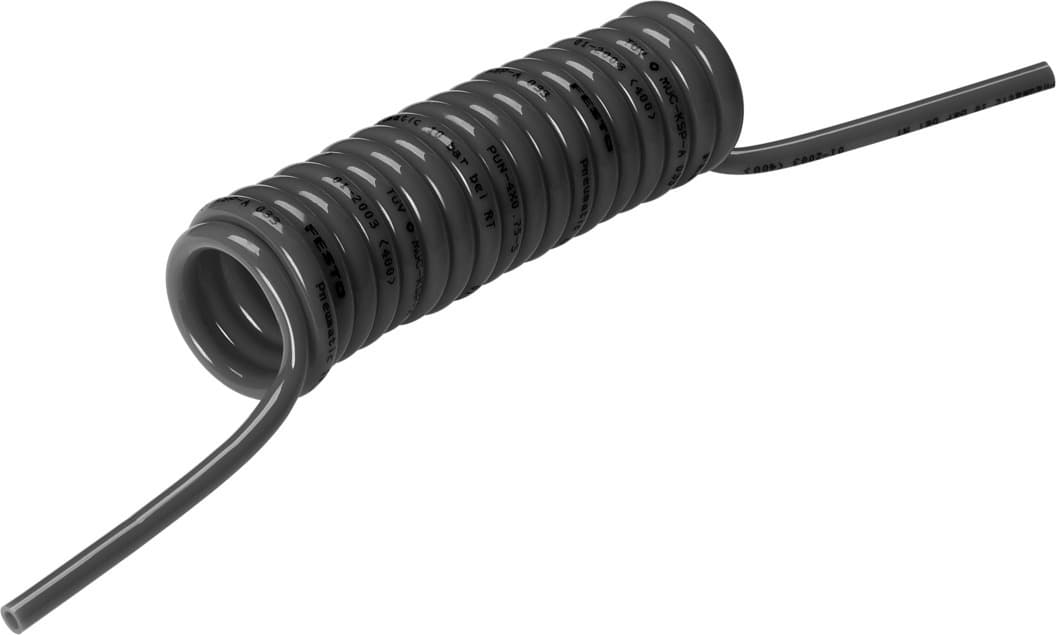

pun-8x1,25-s-6-sw
Selling Points
- 1Made from TPE-U(PU) material, ensuring durability and resistance to hydrolysis.
- 2Spiral tubing with 87 turns, providing flexibility and ease of installation.
- 3Meets German Technical Control Board (TÜV) standards and VDMA24364-B2-L LABS (PWIS) conformity.
- 4Compatible with push-in connectors (O.D. 8mm) and barbed fittings (inside diameter 6mm with union nut).
- 5Operates between -0.95 bar and 10 bar, suitable for a wide range of ambient temperatures (-35°C to 60°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Working length | 6m | Outside diameter | 8mm |
Block length | 0.904m | Inside diameter | 5.7mm |
Winding diameter | 60mm | Number of windings | 87 |
Temperature-dependent operating pressure | -13.775psi 145psi | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight | 440g | Pneumatic connection | For plug connection outside diameter 8 mm For barbed fitting, inside diameter 6 mm, with union nut For barbed fitting, inside diameter 6 mm |
Color | Black | Shore hardness | D 52 +/-3 |
Material of pneumatic tubing | TPE-U(PU) | Manufacturer ID | 197610 |
Specifications may be subject to change without notice
