Product Model
pun-cm-10-sw
Selling Points

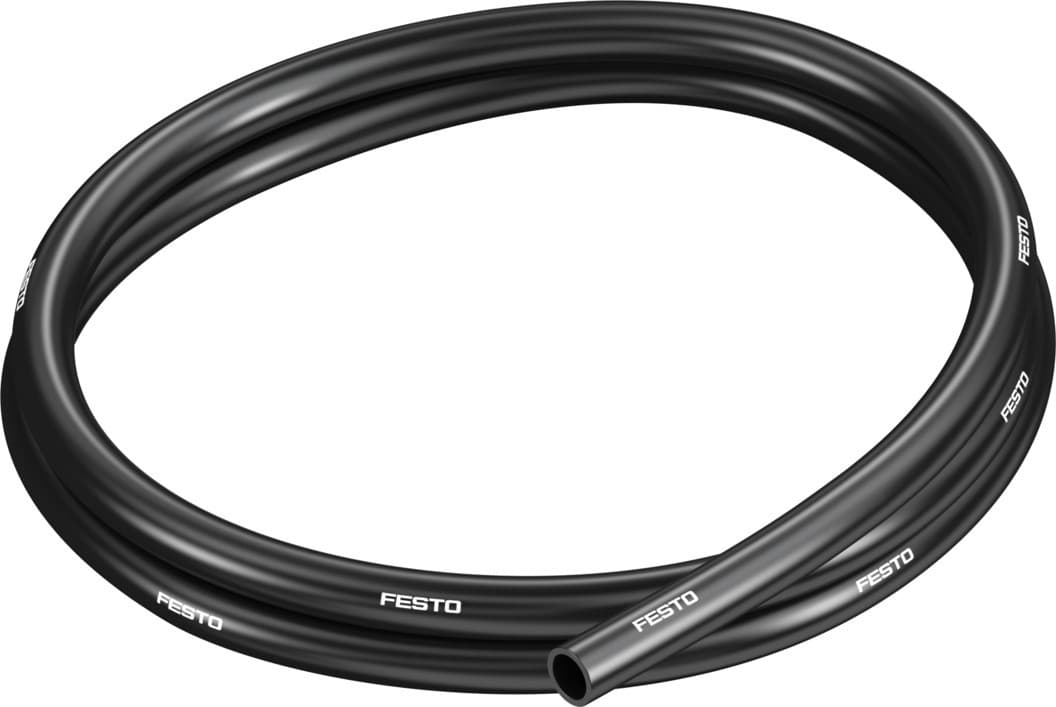

- 1The Festo PUN-CM-10-SW plastic tubing features an outside diameter of 10 mm, ensuring a precise fit for various pneumatic applications.
- 2With a flow-relevant bending radius of 60 mm, this tubing is optimized for efficient fluid flow, making it suitable for high-cycle applications.
- 3The inside diameter of 7 mm and minimum bending radius of 30 mm provide flexibility and durability, ensuring reliable performance in demanding environments.
- 4The PUN-CM-10-SW is designed to work with compressed air as per ISO 8573-1:2010, ensuring compatibility with standard pneumatic systems.
- 5This tubing is made from TPE-U(PU) material, which is RoHS-compliant and copper-free, offering excellent resistance to surface contaminants and maintaining its integrity up to 60°C ambient temperature.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 10mm | Bending radius relevant for flow rate | 60mm |
Inside diameter | 7mm | Min. bending radius | 30mm |
Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -13.775psi 145psi |
Surface resistance | 0.01MOhm 10MOhm | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.05158kg/m | Pneumatic connection | For plug connection outside diameter 10 mm |
Color | Black | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 130817 |
Specifications may be subject to change without notice
