Product Model
pun-cm-12-sw
Selling Points

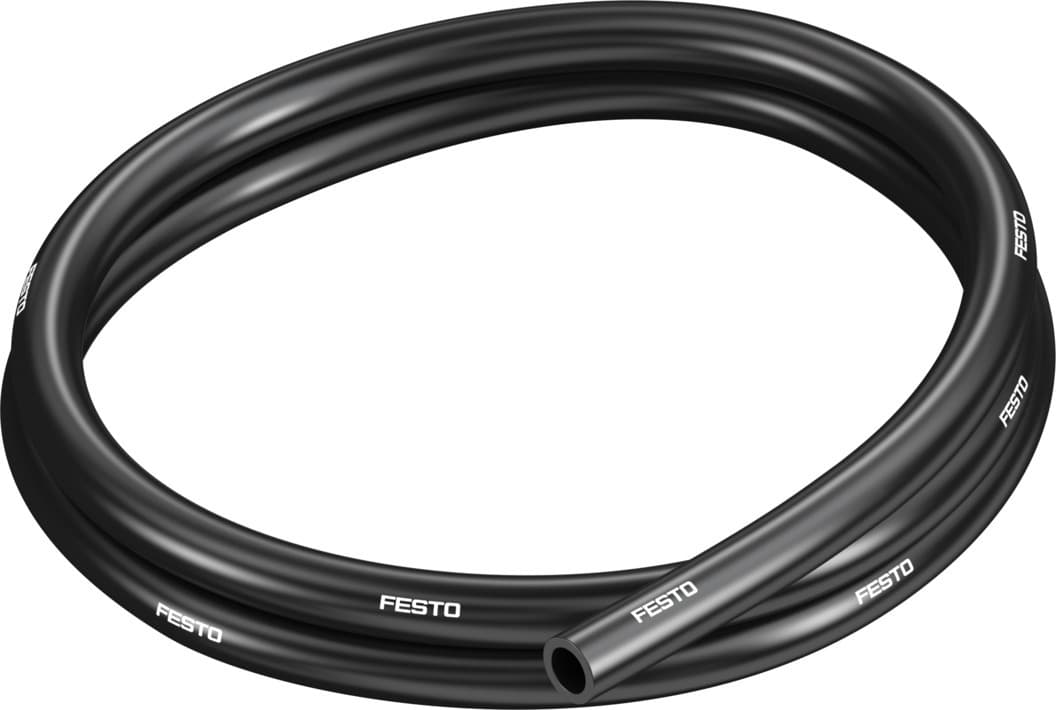

- 1The Festo PUN-CM-12-SW plastic tubing boasts a 12mm outside diameter and an 8mm inside diameter, making it versatile for various pneumatic applications.
- 2With a flow-relevant bending radius of 70mm and a minimum bending radius of 30mm, this tubing ensures efficient fluid flow and flexibility in installation.
- 3Designed for use with energy chains, the PUN-CM-12-SW is perfect for applications requiring reliable and durable tubing characteristics.
- 4Operating within a temperature range of -35°C to 60°C, this tubing is suitable for a wide range of environments and applications.
- 5Made from TPE-U(PU) material, the PUN-CM-12-SW is RoHS-compliant and features a surface resistance of 0.01 MOhm to 10 MOhm, ensuring high-quality performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 12mm | Bending radius relevant for flow rate | 70mm |
Inside diameter | 8mm | Min. bending radius | 30mm |
Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -13.775psi 145psi |
Surface resistance | 0.01MOhm 10MOhm | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.08107kg/m | Pneumatic connection | For plug connection outside diameter 12 mm |
Color | Black | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 130818 |
Specifications may be subject to change without notice
