Product Model
pun-cm-8-sw
Selling Points

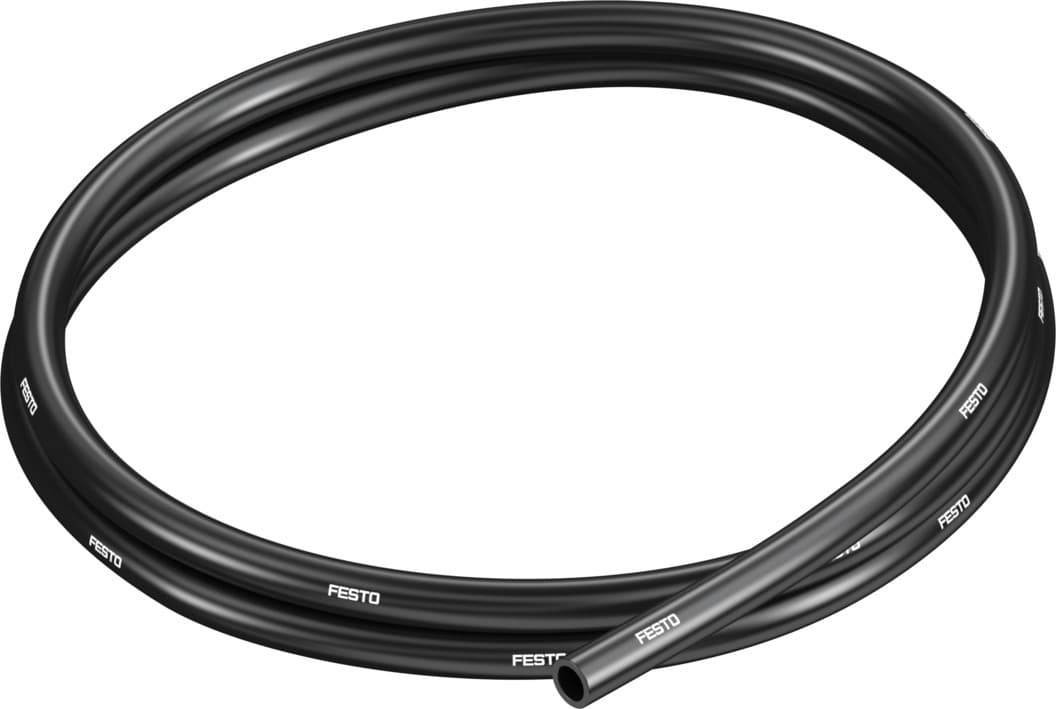

- 1The Festo PUN-CM-8-SW plastic tubing features an 8mm outside diameter and a 37mm flow-relevant bending radius, making it suitable for various pneumatic applications.
- 2With an inside diameter of 5.5mm and a minimum bending radius of 20mm, this tubing ensures efficient airflow and durability in high-cycle applications.
- 3The PUN-CM-8-SW is designed to operate within a temperature range of -35°C to 60°C and supports operating pressures from -0.95 bar to 10 bar, making it versatile for different environments.
- 4This tubing is compatible with compressed air to ISO 8573-1:2010 and has a surface resistance of 0.01 MOhm to 10 MOhm, ensuring reliable performance in pneumatic systems.
- 5The PUN-CM-8-SW is made from TPE-U(PU) material, which is RoHS-compliant and copper-free, providing a safe and environmentally friendly solution for your pneumatic needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 8mm | Bending radius relevant for flow rate | 37mm |
Inside diameter | 5.5mm | Min. bending radius | 20mm |
Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -13.775psi 145psi |
Surface resistance | 0.01MOhm 10MOhm | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.03527kg/m | Pneumatic connection | For plug connection outside diameter 8 mm |
Color | Black | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 130816 |
Specifications may be subject to change without notice
