Product Model

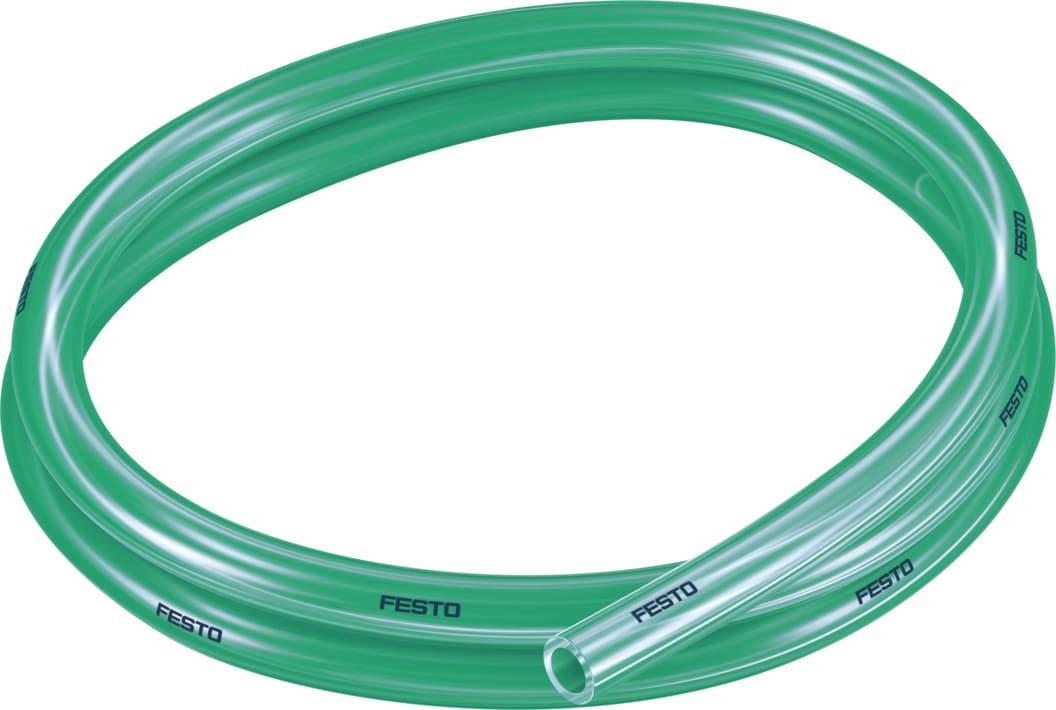

pun-h-1/2-tgn-150-cb
Selling Points
- 1High-Quality Material: The Festo PUN-H-1/2-SI-150-CB tubing is made from thermoplastic polyurethane (TPE-U), ensuring durability and resistance to various operating conditions.
- 2Wide Operating Pressure Range: This tubing can handle operating pressures from -14 to 145 PSI (-1 to 10 bar), making it versatile for various industrial applications.
- 3Versatile Applications: Suitable for use with compressed air and water, the PUN-H-1/2-SI-150-CB tubing is ideal for applications in robotics, flexible manufacturing systems, and X-Ray inspection machines.
- 4Durable Design: With a minimum bend radius of 2.047 inches (52 mm), this tubing offers excellent flexibility and resistance to wear and tear.
- 5Stringent Quality Control: Festo's rigorous quality control process ensures that all products meet high standards, providing customers with confidence in their purchases.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
External-? inches | 1/2 | Bending radius relevant for flow rate | 62.179mm |
Min. bending radius | 22.86mm | Application note | TPE-U Ether based |
Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -0.993bar 9.997bar |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 63°C |
Product weight by length | 0.88kg/m | Pneumatic connection | For plug connection outside diameter 1/2" |
Color | Translucent green | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8203983 |
Specifications may be subject to change without notice
