Product Model
pun-h-12x2-rt-25
Selling Points

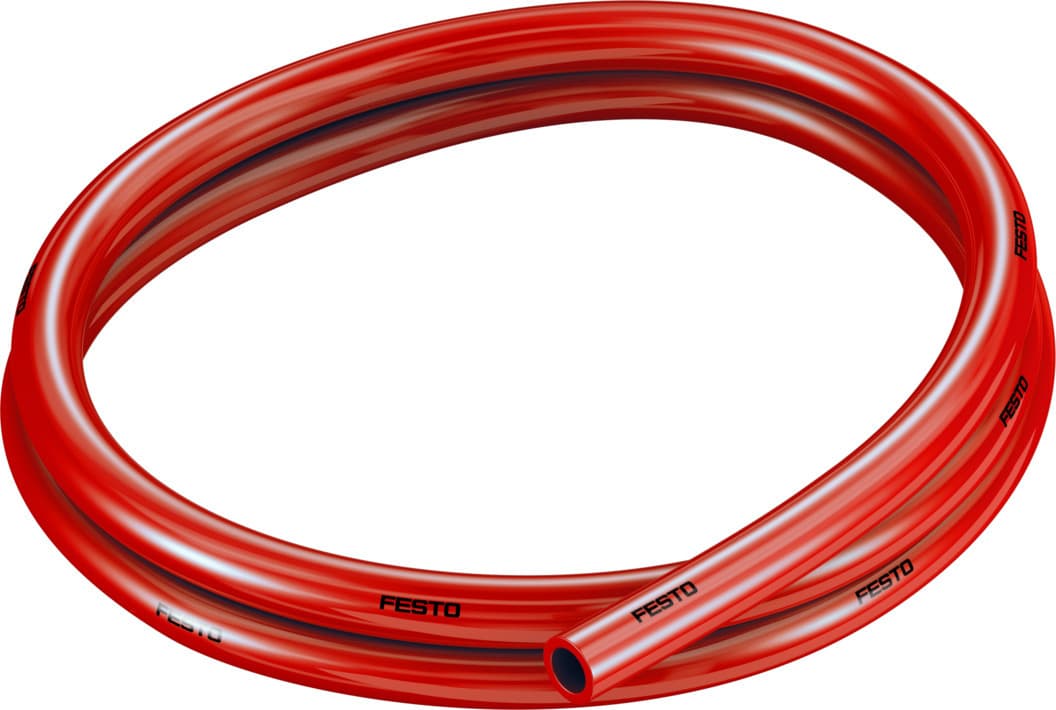

- 1The Festo PUN-H-12X2-RT Red Polyurethane Tubing is designed for use with compressed air, ensuring reliable performance in various pneumatic systems.
- 2With an outside diameter of 12 mm and an inside diameter of 8 mm, this tubing provides a precise fit for your pneumatic connections.
- 3The tubing is made from high-quality polyurethane, offering excellent flexibility and hydrolysis resistance, making it suitable for a wide range of applications.
- 4The Festo PUN-H-12X2-RT Red Polyurethane Tubing is certified by the German Technical Control Board (TÜV) and meets ISO 8573-1:2010 standards for compressed air quality.
- 5This tubing is available in 25-meter lengths, providing a convenient option for your pneumatic system needs, and it is also suitable for use in food industry applications due to its cleanliness and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 12mm | Bending radius relevant for flow rate | 62mm |
Inside diameter | 8mm | Min. bending radius | 33mm |
Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0729kg/m | Pneumatic connection | For plug connection outside diameter 12 mm |
Color | Red | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8204449 |
Specifications may be subject to change without notice
