Product Model
pun-h-12x2-sw-25
Selling Points

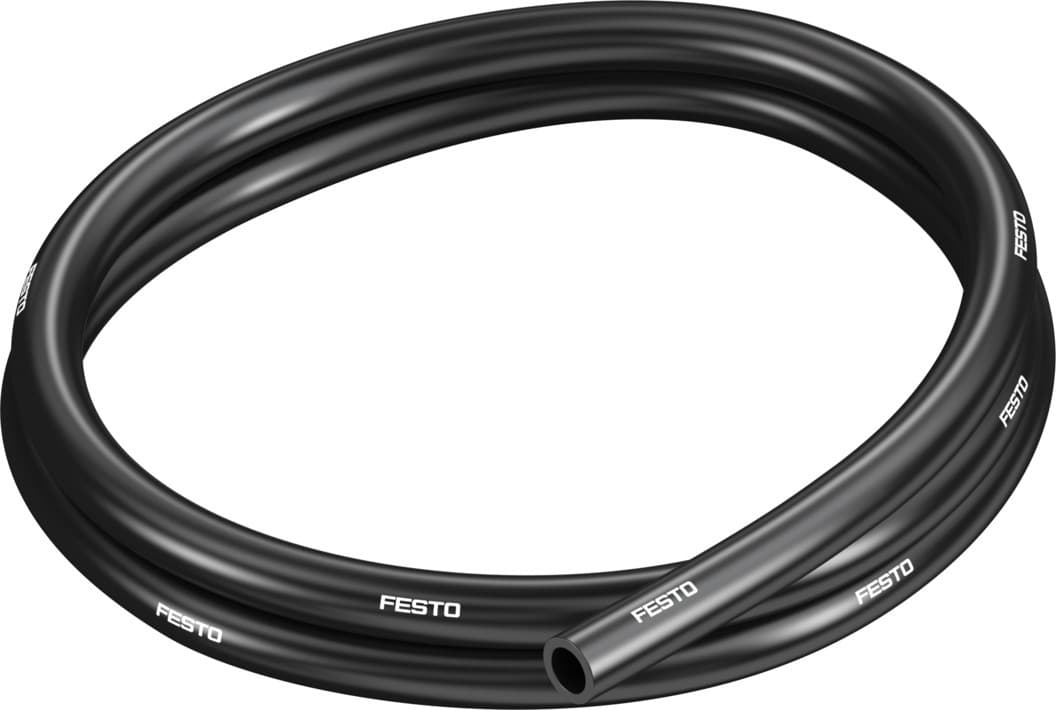

- 1The Festo PUN-H-12X2-SW-25 plastic tubing features an exterior diameter of 12 mm and an inside diameter of 8 mm, ensuring optimal flow rates and compatibility with various pneumatic systems.
- 2This high-quality tubing is designed for applications with high cycle rates, withstanding over 5 million cycles according to FN 942021, making it ideal for demanding industrial environments.
- 3The PUN-H-12X2-SW-25 is hydrolysis-resistant and suitable for water applications, ensuring reliable performance in diverse operating conditions. It is also compliant with RoHS regulations.
- 4The tubing has a flow-relevant bending radius of 62 mm and a minimum bend radius of 33 mm, allowing for efficient installation and minimal pressure loss in pneumatic systems.
- 5The Festo PUN-H-12X2-SW-25 is available in black color and is compatible with cable carriers, making it a versatile choice for various pneumatic connections and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 12mm | Bending radius relevant for flow rate | 62mm |
Inside diameter | 8mm | Min. bending radius | 33mm |
Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0729kg/m | Pneumatic connection | For plug connection outside diameter 12 mm |
Color | Black | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8204444 |
Specifications may be subject to change without notice
