Product Model

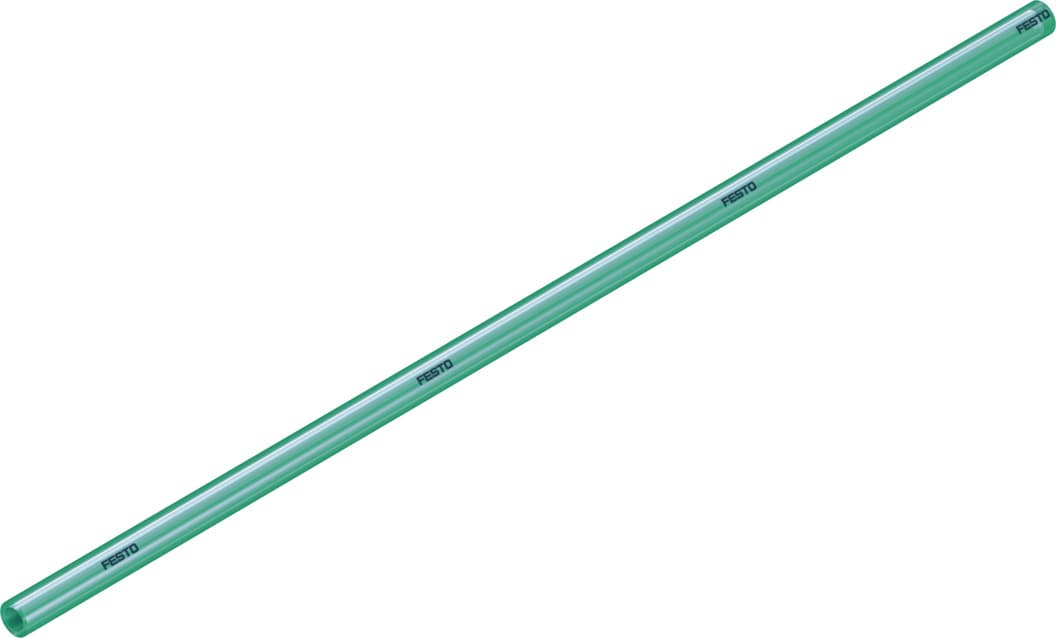

pun-h-1/4-tgn-150-cb
Selling Points
- 1The Festo PUN-H-1/4-TGN-150-CB is a high-performance pneumatic valve engineered for precise control and reliability in industrial applications.
- 2This valve features a robust design and durable construction, ensuring long-lasting operation and minimal maintenance needs.
- 3The PUN-H-1/4-TGN-150-CB offers efficient operation, reducing energy consumption and enhancing overall system performance.
- 4With its compact size and versatile mounting options, this valve is easily integrated into various industrial setups, making it a versatile choice for diverse applications.
- 5The valve is designed with safety in mind, featuring reliable shut-off capabilities and secure connections to prevent accidents and ensure a safe working environment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
External-? inches | 1/4 | Bending radius relevant for flow rate | 25.908mm |
Min. bending radius | 14.021mm | Application note | TPE-U Ether based |
Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -0.993bar 9.997bar |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 63°C |
Product weight by length | 0.23kg/m | Pneumatic connection | For plug connection outside diameter 1/4" |
Color | Translucent green | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8203973 |
Specifications may be subject to change without notice
