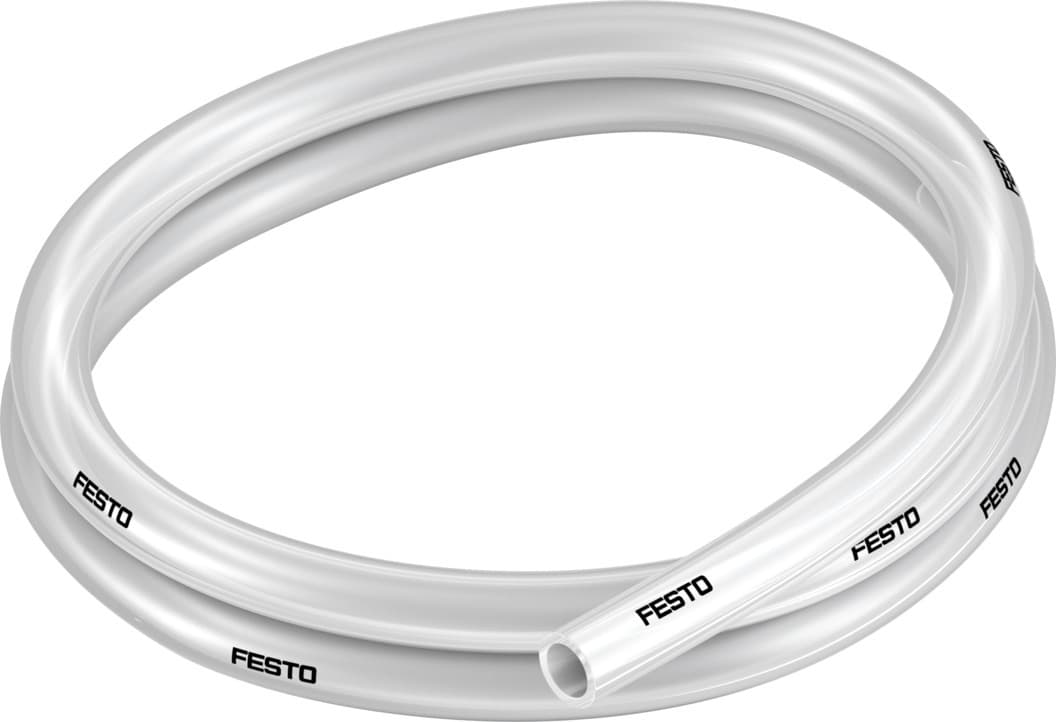

Product Model
pun-h-14x2-nt
Selling Points
- 1High-Quality Material: Made from TPE-U(PU) material, ensuring durability and reliability.
- 2Suitable for High-Cycle Applications: Compatible with cable carriers for applications requiring over 5 million cycles.
- 3Flexible Bending Radius: 78mm flow-relevant bending radius and 38mm minimum bending radius for smooth installation.
- 4Temperature-Dependent Operating Pressure: -0.95 to 10 BAR operating pressure range, suitable for various environments.
- 5Compliant with Regulations: RoHS compliant and UL94 HB fire test material, ensuring safety and environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 14mm | Bending radius relevant for flow rate | 78mm |
Inside diameter | 9.8mm | Min. bending radius | 38mm |
Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
Product weight by length | 0.091kg/m | Pneumatic connection | For plug connection outside diameter 14 mm |
Color | Natural | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 570388 |
Specifications may be subject to change without notice
