Product Model

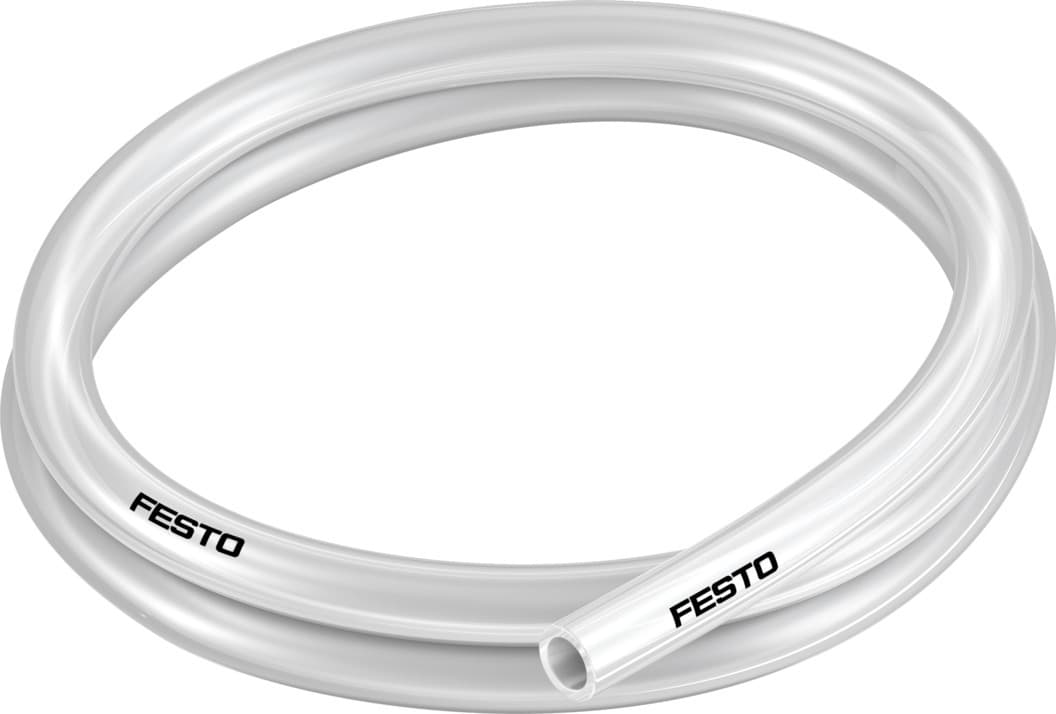

pun-h-16x2,5-nt
Selling Points
- 1High-Quality Material - The PUN-H-16X2,5-NT plastic tubing is made from TPE-U (Thermoplastic Elastomer-Urethane), ensuring durability and resistance to various operating conditions.
- 2Food-Safe and Hygienic - This tubing is approved for use in the food industry, making it a reliable choice for applications where cleanliness is crucial.
- 3Versatile Operating Pressure - The tubing supports a wide range of operating pressures, from -0.95 to 10 bar, making it suitable for various pneumatic systems.
- 4Energy Chain Compatibility - Designed for energy chains with high cycle rates, this tubing can withstand over 5 million cycles, ensuring long-lasting performance.
- 5Certified and Compliant - The PUN-H-16X2,5-NT is certified by the German Technical Control Board (TÜV) and complies with RoHS regulations, ensuring it meets stringent quality and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 16mm | Bending radius relevant for flow rate | 88mm |
Inside diameter | 11mm | Min. bending radius | 38mm |
Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
Product weight by length | 0.123kg/m | Pneumatic connection | For plug connection outside diameter 16 mm |
Color | Natural | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 197381 |
Specifications may be subject to change without notice
