Product Model

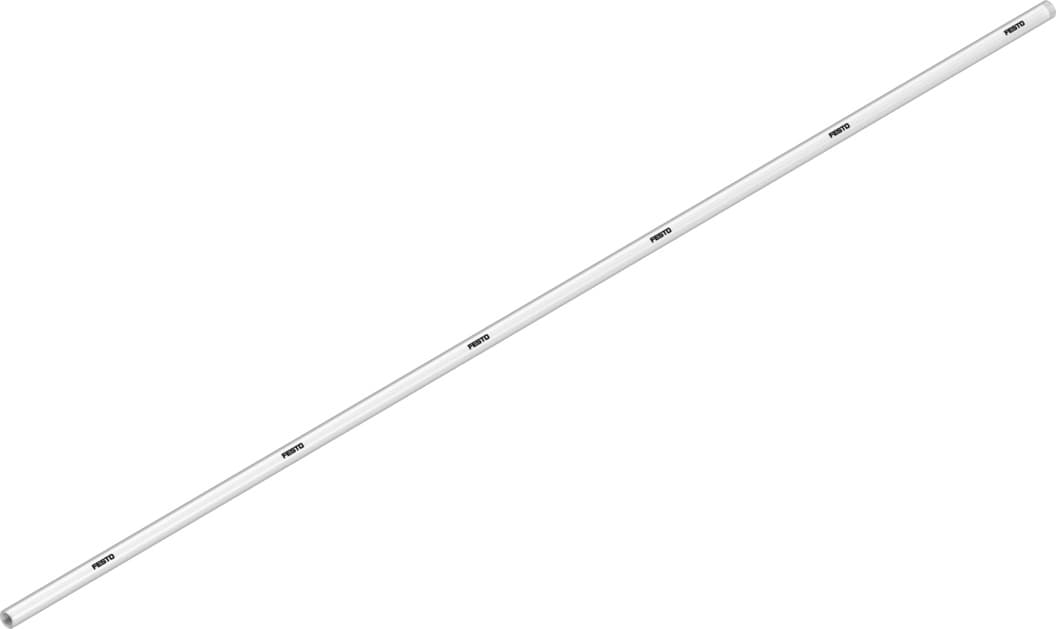

pun-h-1/8-nt-150-cb
Selling Points
- 1Designed for use in food processing environments, ensuring durability and safety.
- 21/8 inch outside diameter for efficient use in tight spaces.
- 3Optimized bending radius (0.039 ft) for smooth airflow and minimal pressure loss.
- 4Operating pressure range from -14.4 to 145 Psi, suitable for various ambient temperatures (-31 to 145 °F).
- 5Made from TPE-U material, compliant with UL94 HB fire test and VDMA24364-B2-L standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
External-? inches | 1/8 | Bending radius relevant for flow rate | 11.887mm |
Min. bending radius | 6.096mm | Application note | TPE-U Ether based |
Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -0.993bar 9.997bar |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 63°C |
Product weight by length | 0.06kg/m | Pneumatic connection | For plug connection outside diameter 1/8" |
Color | Natural | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 567961 |
Specifications may be subject to change without notice
