Product Model
pun-h-2x0,4-nt
Selling Points

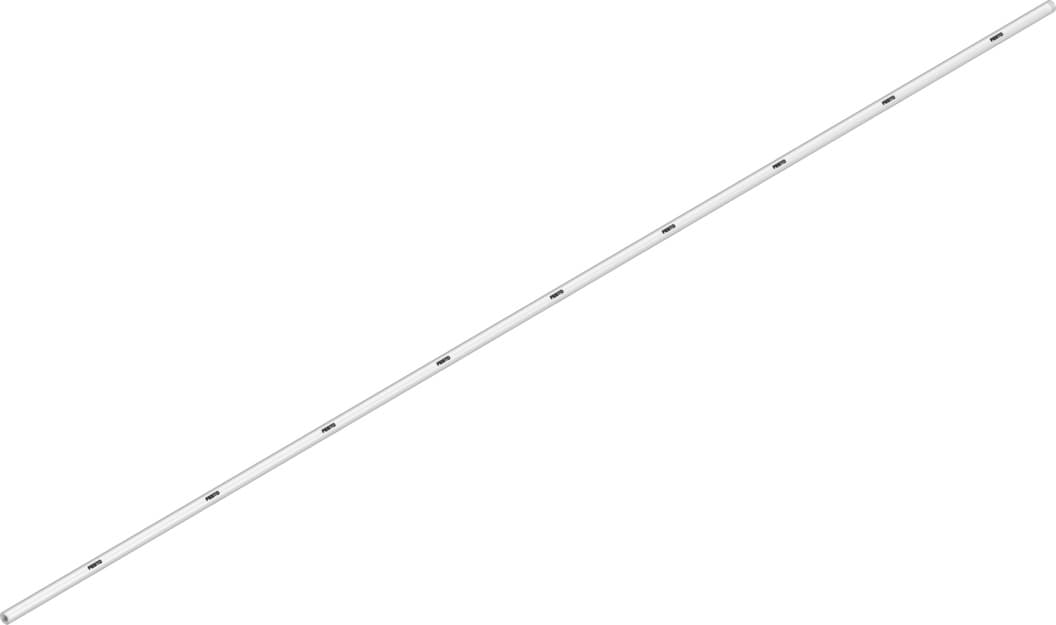

- 1The Festo PUN-H-2X0,4-NT plastic tubing is designed for high-cycle applications, ensuring reliability and durability in demanding environments.
- 2This tubing is hydrolysis-resistant, making it suitable for use in food processing environments where cleanliness is crucial.
- 3With an outside diameter of 2 mm and an inside diameter of 1.2 mm, this tubing offers precise flow control and minimal resistance.
- 4The tubing has a bending radius relevant for flow rate of 8 mm and a minimum bending radius of 5 mm, ensuring optimal performance in various installation scenarios.
- 5The Festo PUN-H-2X0,4-NT is compatible with compressed air in accordance with ISO8573-1:2010, ensuring compliance with industry standards for pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 2mm | Bending radius relevant for flow rate | 8mm |
Inside diameter | 1.2mm | Min. bending radius | 5mm |
Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0024kg/m | Pneumatic connection | For plug connection outside diameter 2 mm |
Color | Natural | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 133038 |
Specifications may be subject to change without notice
