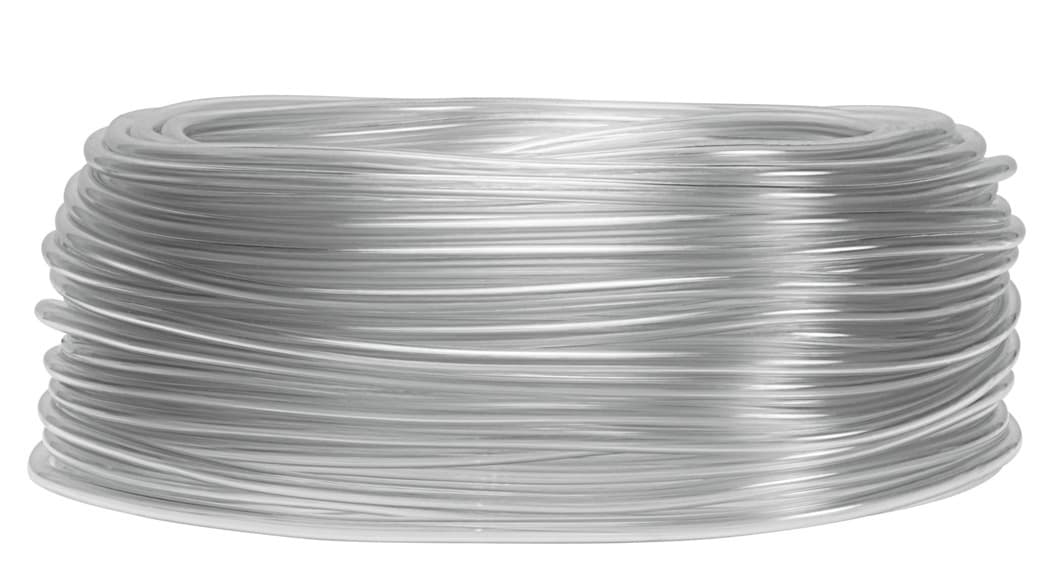

Product Model
pun-h-3/8-nt-500-ha
Selling Points
- 1>5 million cycles as per FN 942021, ideal for energy chain applications.
- 2-0.993 bar to 9.997 bar, ensuring reliable operation across a wide temperature range.
- 3Compatible with water and compressed air, meeting ISO 8573-1:2010 standards.
- 4Suitable for use in the food industry; see supplementary material information for details.
- 5Made from TPE-U(PU) material, RoHS-compliant, free of copper and PTFE, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
External-? inches | 3/8 | Bending radius relevant for flow rate | 52.121mm |
Min. bending radius | 24.994mm | Application note | TPE-U Ether based |
Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -0.993bar 9.997bar |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 63°C |
Product weight by length | 0.48kg/m | Pneumatic connection | For plug connection outside diameter 3/8" |
Color | Natural | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8003128 |
Specifications may be subject to change without notice
