Product Model
pun-h-3/8-trt-150-cb
Selling Points

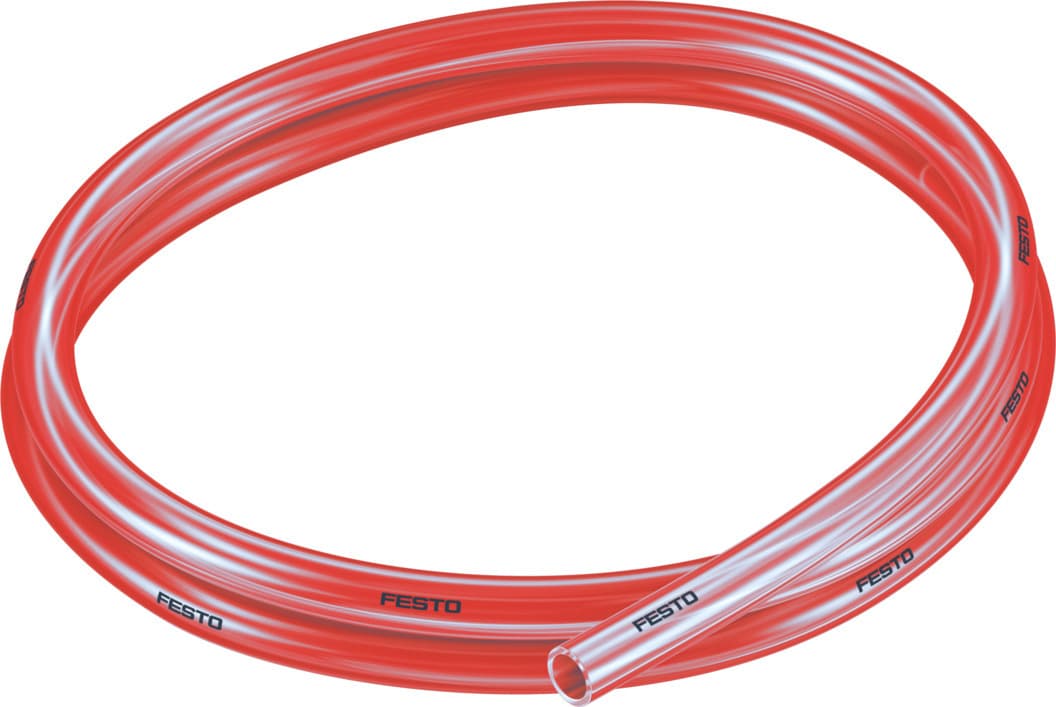

- 1The Festo PUN-H-3/8-TRT-150-CB tubing is made from thermoplastic polyurethane (TPE-U), ensuring high flexibility and durability in various industrial applications.
- 2This tubing features a continuous spool packaging method, which protects the product from moisture and prevents mold and mildew growth, ensuring a longer lifespan.
- 3The PUN-H-3/8-TRT-150-CB is suitable for use with compressed air and water, making it versatile for a wide range of industrial processes, including robotics and flexible manufacturing systems.
- 4With an operating pressure range of -14 to 145 PSI (-1 to 10 bar) and an operating temperature range of -35°C to 60°C, this tubing can handle various environmental conditions.
- 5The Festo PUN-H-3/8-TRT-150-CB tubing is designed with safety in mind, adhering to RoHS compliance and UL94 HB fire test standards, ensuring it meets stringent industrial safety requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
External-? inches | 3/8 | Bending radius relevant for flow rate | 52.121mm |
Min. bending radius | 24.994mm | Application note | TPE-U Ether based |
Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -0.993bar 9.997bar |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 63°C |
Product weight by length | 0.48kg/m | Pneumatic connection | For plug connection outside diameter 3/8" |
Color | Translucent red | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8203977 |
Specifications may be subject to change without notice
