Product Model

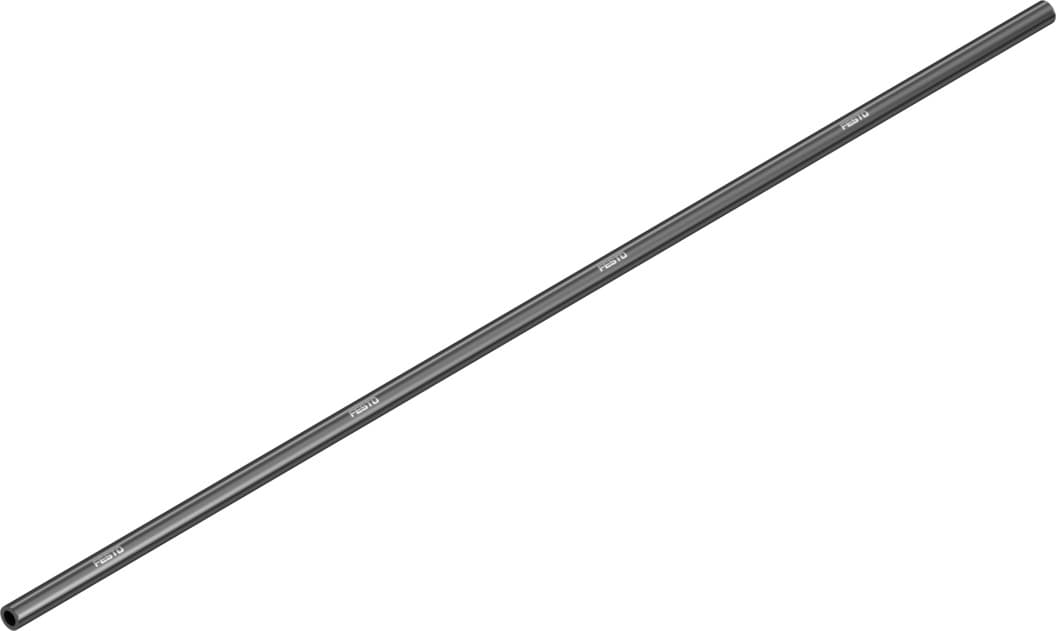

pun-h-4x0,75-sw-25
Selling Points
- 1The PUN-H-4X0,75-SW-25 is made from a hydrolysis-resistant material, ensuring it remains durable and resistant to moisture in various environments.
- 2This tubing is approved for use in food processing, making it a reliable choice for applications where cleanliness and safety are paramount.
- 3Designed for high-cycle applications, the PUN-H-4X0,75-SW-25 can withstand over 5 million cycles without compromising its integrity.
- 4The tubing features a push-in connector with an outside diameter of 4 mm, making it easy to install and connect to other pneumatic components.
- 5The tubing operates within a temperature-dependent pressure range of -0.95 to 10 bar, ensuring optimal performance in various temperature conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 4mm | Bending radius relevant for flow rate | 16mm |
Inside diameter | 2.6mm | Min. bending radius | 8mm |
Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0085kg/m | Pneumatic connection | For plug connection outside diameter 4 mm For barbed fitting, inside diameter 3 mm, with union nut |
Color | Black | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8205515 |
Specifications may be subject to change without notice
