Product Model

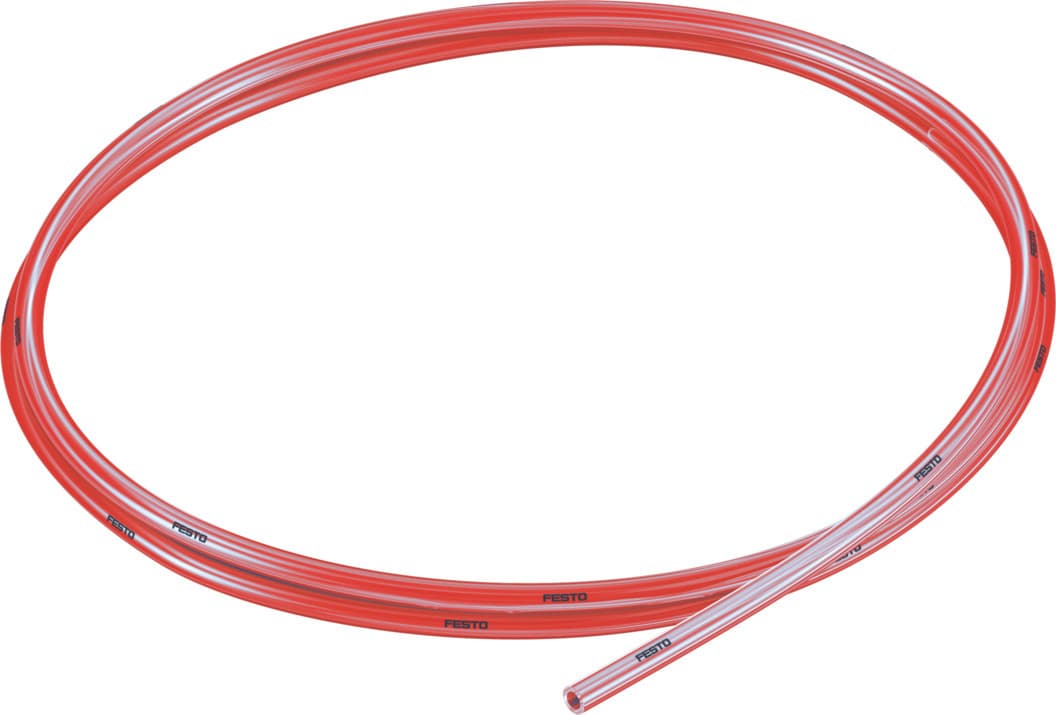

pun-h-4x0,75-trt
Selling Points
- 1Hydrolysis-Resistant Material: Made from TPE-U(PU), ensuring durability in various environments.
- 2Temperature-Dependent Operating Pressure: Supports pressures from -0.95 to +10 bar across a wide temperature range.
- 3Compressed Air Compatible: Meets ISO 8573-1:2010 standards for compressed air applications.
- 4Suitable for Energy Chains: Designed for high-cycle rate applications with energy chains.
- 5RoHS Compliant and Food Industry Approved: Safe for use in food processing and compliant with RoHS regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 4mm | Bending radius relevant for flow rate | 16mm |
Inside diameter | 2.6mm | Min. bending radius | 8mm |
Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0085kg/m | Pneumatic connection | For plug connection outside diameter 4 mm For barbed fitting, inside diameter 3 mm, with union nut |
Color | Translucent red | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8048675 |
Specifications may be subject to change without notice
