Product Model

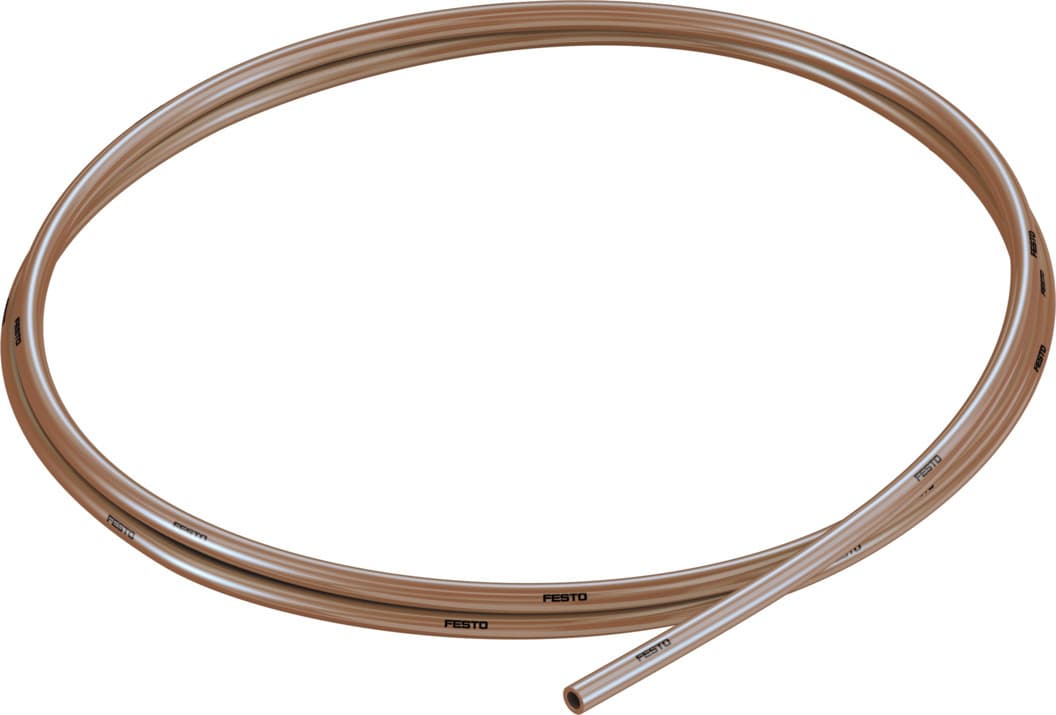

pun-h-5/32-br-150-cb
Selling Points
- 1Hydrolysis-resistant and food-safe: Designed for use in food processing environments.
- 2Flexible and durable: Made from TPE-U(PU) material, ensuring high flexibility and durability.
- 3Suitable for energy chains: Can withstand high cycle rates in energy chain applications.
- 4Compliant with ISO 8573-1:2010: Meets international standards for compressed air quality.
- 5Temperature-dependent operating pressure: Adjustable pressure range from -14.4 to 145 psi.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
External-? inches | 5/32 | Bending radius relevant for flow rate | 15.85mm |
Min. bending radius | 6.096mm | Application note | TPE-U Ether based |
Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -0.993bar 9.997bar |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 63°C |
Product weight by length | 0.09kg/m | Pneumatic connection | For plug connection outside diameter 5/32" |
Color | Brown | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 567994 |
Specifications may be subject to change without notice
