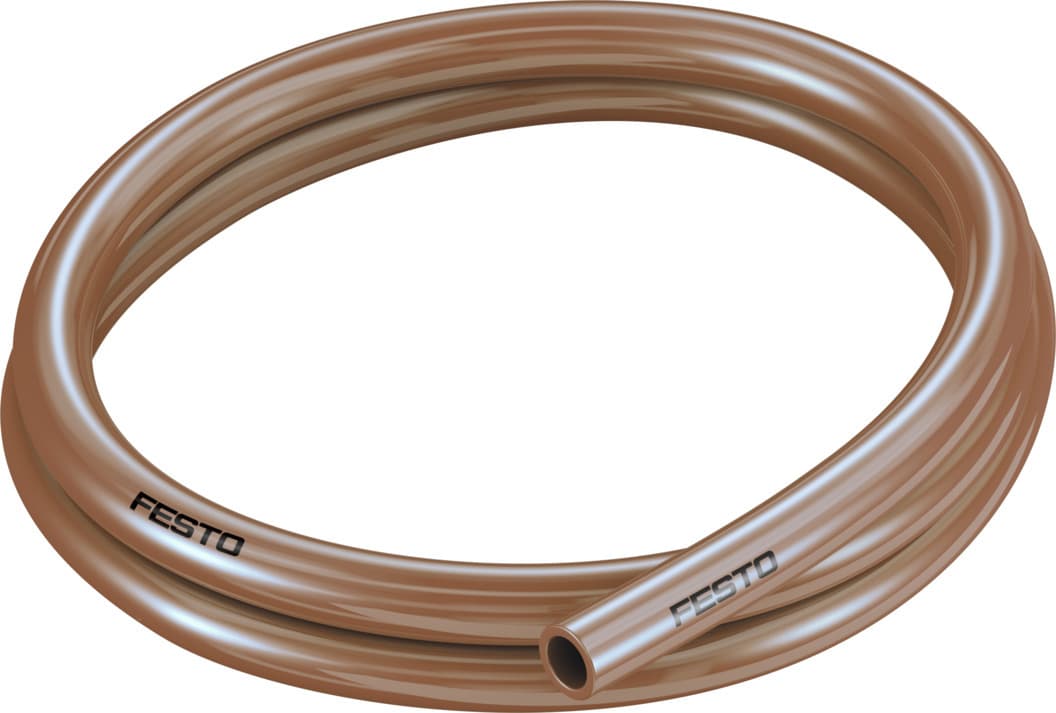

Festo PUN-H-5/8-BR-150-CB Brown Polyurethane Tubing for Pneumatics

Selling Points

1High-Quality Material: Made from durable thermoplastic polyurethane (TPE-U) for long-lasting performance.
2Compressed Air Compatible: Designed for use with compressed air in accordance with ISO8573-1:2010.
3Food-Safe and Hydrolysis Resistant: Suitable for food processing applications and resistant to hydrolysis.
4Wide Temperature Range: Operates between -35°C to 63°C, ensuring flexibility in various environments.
5Brown Color for Easy Identification: Brown color makes it easy to identify and handle in industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
External-? inches	5/8	Bending radius relevant for flow rate	87.782mm
Min. bending radius	38.1mm	Application note	TPE-U Ether based
Tubing characteristics	Suitable for energy chains	Temperature-dependent operating pressure	-0.993bar 9.997bar
Information on operating pressure	Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Material fire test	UL94 HB	LABS (PWIS) conformity	VDMA24364-B2-L
Suitability for the production of Li-ion batteries	Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils	Cleanroom class	Statically installed element, no meaningful evaluation possible according to ISO 14644-1
For use in the food industry	See supplementary material information	Ambient temperature	-35°C 63°C
Product weight by length	1.38kg/m	Pneumatic connection	For plug connection outside diameter 5/8"
Color	Brown	Shore hardness	D 52 +/-3
Note on materials	RoHS-compliant	Material of pneumatic tubing	TPE-U(PU)
Manufacturer ID	568000

Specifications may be subject to change without notice
