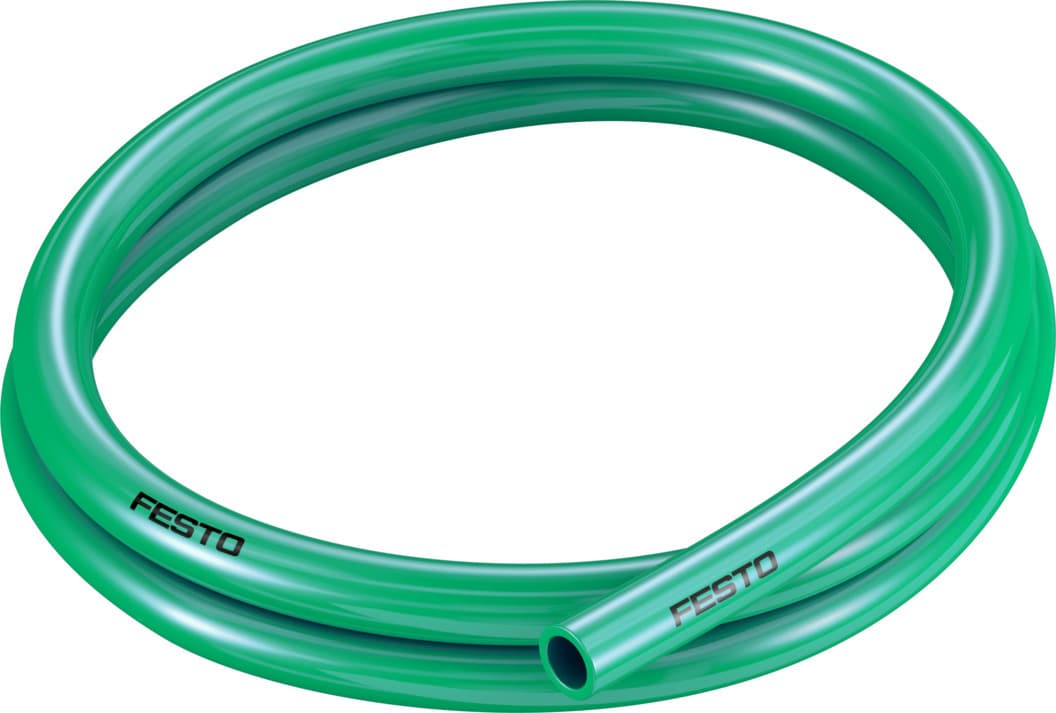

Product Model
pun-h-5/8-gn-150-cb
Selling Points
- 1High-Quality Material: Made from TPE-U(PU) material, free of copper and PTFE, ensuring durability and resistance to chemicals.
- 2Food-Safe and Cleanroom Compatible: Approved for use in food processing and suitable for cleanroom environments according to ISO 14644-1.
- 3Temperature-Dependent Operating Pressure: Handles compressed air and water with a temperature-dependent operating pressure range of -14.4 to 145 Psi.
- 4Flexible and Bendable: Features a flow-relevant bending radius of 0.288 feet and a minimum bending radius of 0.125 feet.
- 5Compliant with RoHS and UL94 HB: Meets RoHS standards and UL94 HB fire test material requirements, ensuring safety and environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
External-? inches | 5/8 | Bending radius relevant for flow rate | 87.782mm |
Min. bending radius | 38.1mm | Application note | TPE-U Ether based |
Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -0.993bar 9.997bar |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 63°C |
Product weight by length | 1.38kg/m | Pneumatic connection | For plug connection outside diameter 5/8" |
Color | Green | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 567984 |
Specifications may be subject to change without notice
