Product Model

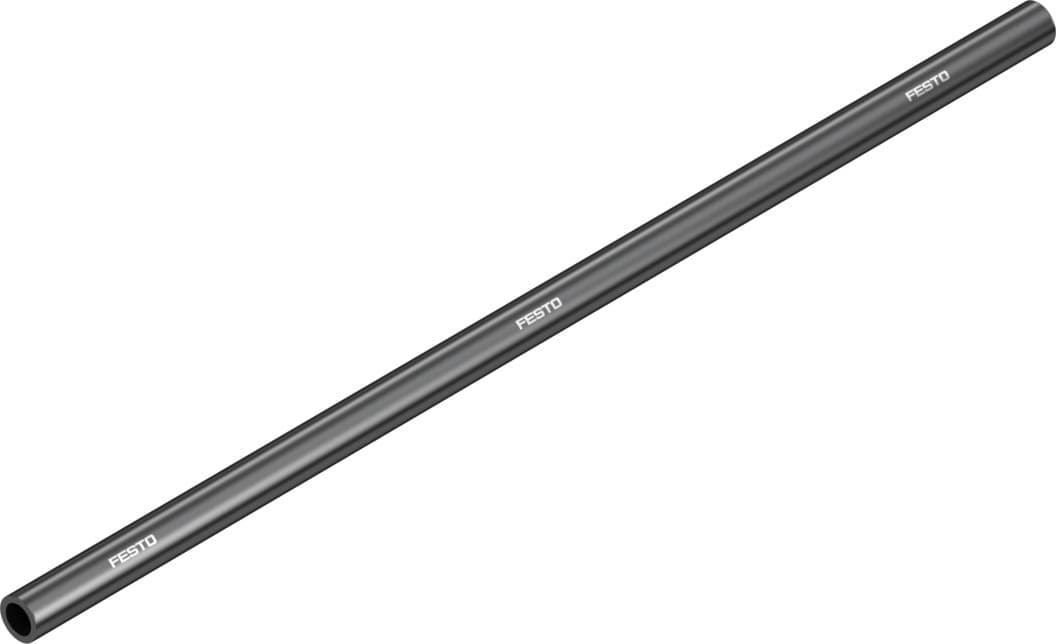

pun-h-8x1,25-sw-25
Selling Points
- 1The PUN-H-8x1.25-SW-25 plastic tubing is designed to withstand hydrolysis and is FDA compliant, making it suitable for use in food processing and cleanroom environments.
- 2This tubing can operate at temperatures ranging from -35°C to 60°C, with a temperature-dependent operating pressure of up to 10 bar (145 psi).
- 3The one-click principle makes installation very easy, ensuring quick and efficient setup in various pneumatic applications.
- 4The PUN-H-8x1.25-SW-25 meets international standards such as ISO 8573-1:2010 for compressed air and VDMA24364-B2-L for fire test material UL94 HB LABS (PWIS).
- 5Made from thermoplastic polyurethane (TPE-U/Pu), this tubing is 100% polymer, ensuring it is corrosion-resistant and durable for long-term use in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 8mm | Bending radius relevant for flow rate | 37mm |
Inside diameter | 5.7mm | Min. bending radius | 21mm |
Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0287kg/m | Pneumatic connection | For plug connection outside diameter 8 mm For barbed fitting, inside diameter 6 mm, with union nut |
Color | Black | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8205517 |
Specifications may be subject to change without notice
