Product Model

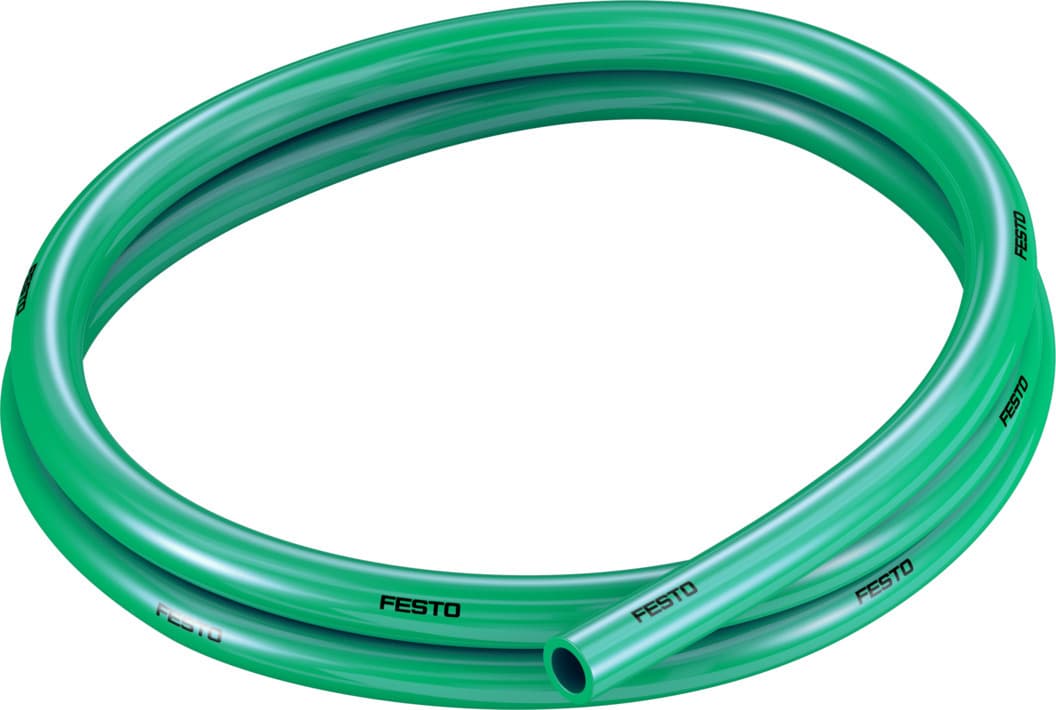

pun-v0-12x2-gn-c
Selling Points
- 1Flame retardant and UL94 V-0 certified for safety.
- 2Suitable for energy chains with high cycle rates.
- 3Operating pressure range: -0.95 to 10 bar.
- 4Compatible with compressed air (ISO 8573-1:2010) and water.
- 5Green color with Shore hardness D 54 +/-3 for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 12mm | Bending radius relevant for flow rate | 55mm |
Inside diameter | 8mm | Min. bending radius | 19mm |
Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 101.5psi |
Temperature-dependent operating pressure | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.08kg/m |
Pneumatic connection | For plug connection outside diameter 12 mm | Color | Green |
Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 561709 |
Specifications may be subject to change without notice
