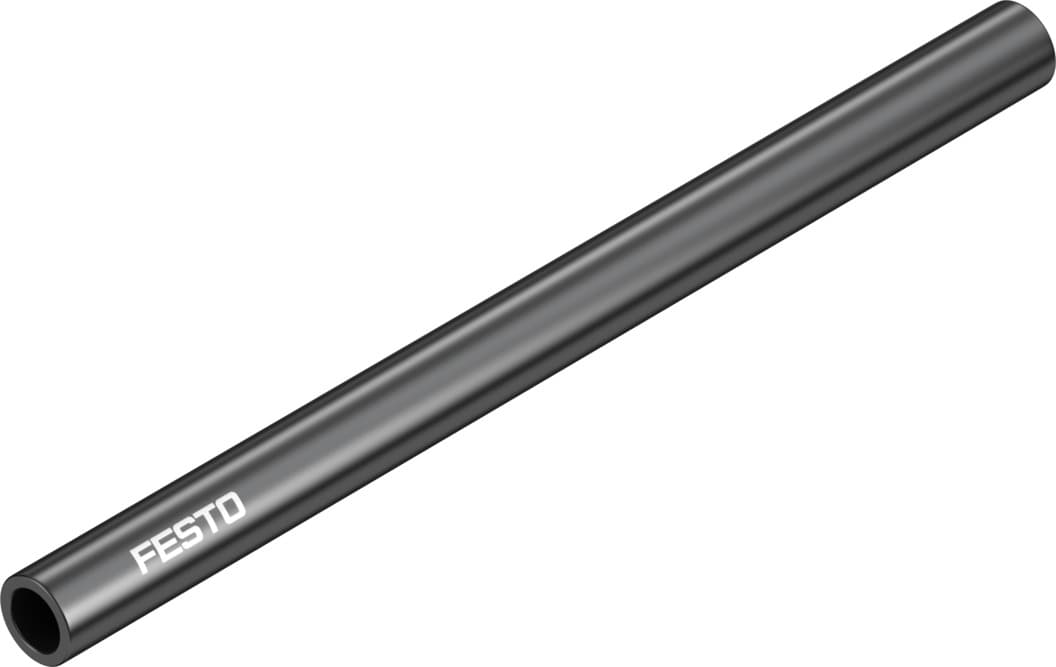

Product Model
pun-v0-16x2-sw
Selling Points
- 1Meets UL94 V-0 and V-2 standards for fire safety.
- 2Supports up to 0.6 MPa (87 psi) at 50°C.
- 3Compatible with compressed air and water, ideal for various industrial applications.
- 4Made from TPE-U(PU) material, ensuring long-lasting performance.
- 5Features a plug connection and push-in connector options for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 16mm | Bending radius relevant for flow rate | 90mm |
Inside diameter | 11.8mm | Min. bending radius | 50mm |
Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 130.5psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.122kg/m |
Pneumatic connection | For plug connection outside diameter 16 mm | Color | Black |
Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 570767 |
Specifications may be subject to change without notice
