Product Model

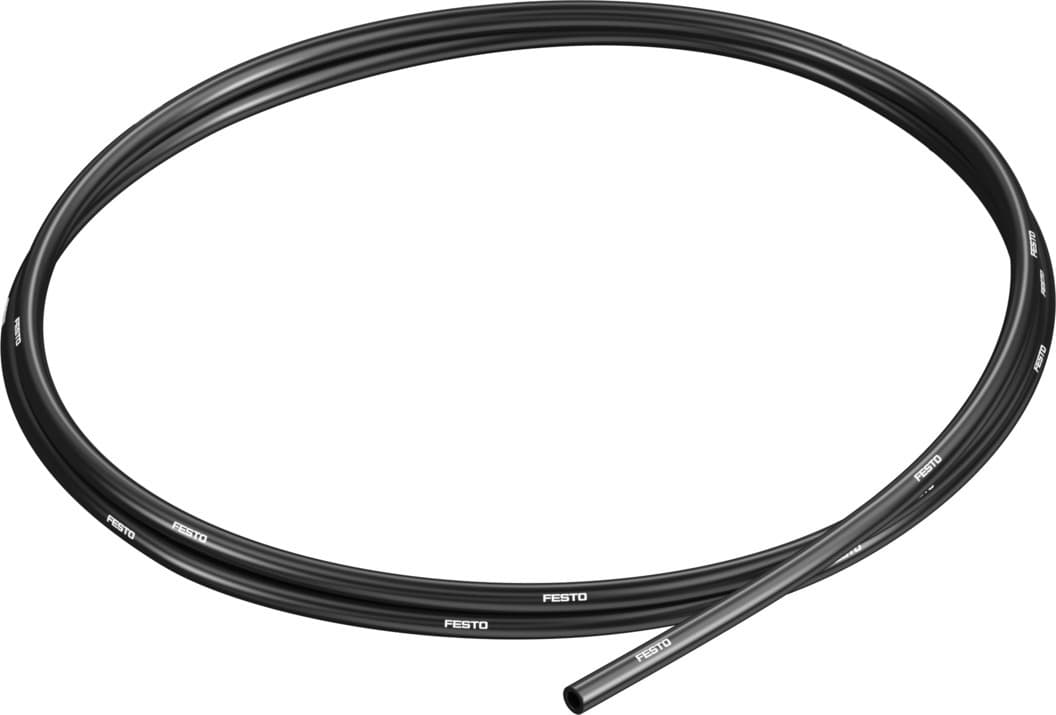

pun-v0-4x1-sw-c
Selling Points
- 1Suitable for energy chains in applications with high cycle rates.
- 2Meets UL94 V-0 and V-2 fire test standards for enhanced safety.
- 3German Technical Control Board (TÜV) approved for reliability and quality.
- 420mm flow-relevant bending radius ensures efficient fluid flow.
- 5Made from TPE-U(PU) material, RoHS-compliant and free of copper and PTFE.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 4mm | Bending radius relevant for flow rate | 20mm |
Inside diameter | 2mm | Min. bending radius | 10mm |
Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 101.5psi |
Temperature-dependent operating pressure | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.012kg/m |
Pneumatic connection | For plug connection outside diameter 4 mm | Color | Black |
Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 570349 |
Specifications may be subject to change without notice
