Product Model
pun-v0-6x1-bl
Selling Points

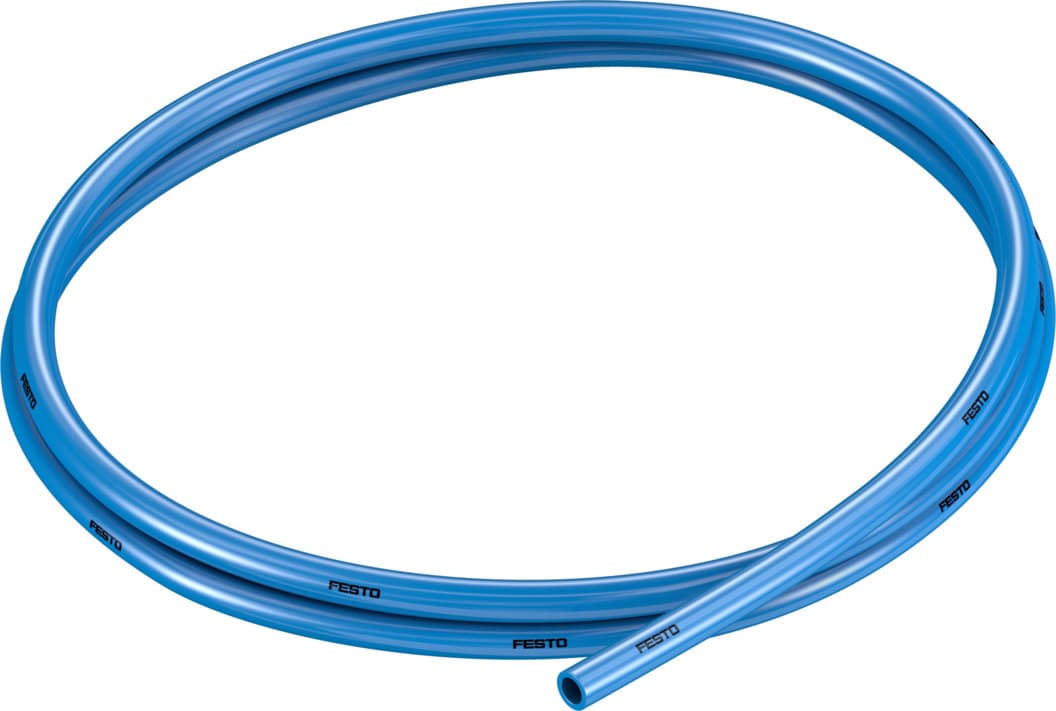

- 1The Festo PUN-6X1-BL plastic tubing features an outside diameter of 6 mm and an inside diameter of 4 mm, making it suitable for various pneumatic applications.
- 2With a bending radius relevant for flow rate of 26.5 mm and a minimum bending radius of 16 mm, this tubing ensures efficient fluid flow and durability.
- 3Designed for energy chains with high cycle rates, the PUN-6X1-BL can withstand over 5 million cycles, ensuring long-lasting performance.
- 4Operating within a temperature range of -35°C to 60°C and with a pressure range of -0.95 to 10 bar, this tubing is versatile for various environmental conditions.
- 5Made from TPE-U (PU) material, free of copper and PTFE, and compliant with RoHS regulations, the PUN-6X1-BL is an eco-friendly and reliable choice for pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 6mm | Bending radius relevant for flow rate | 26.5mm |
Inside diameter | 4mm | Min. bending radius | 12mm |
Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 101.5psi |
Temperature-dependent operating pressure | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.02kg/m |
Pneumatic connection | For plug connection outside diameter 6 mm For barbed fitting, inside diameter 4 mm, with union nut For barbed fitting, inside diameter 4 mm | Color | Blue |
Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 525442 |
Specifications may be subject to change without notice
