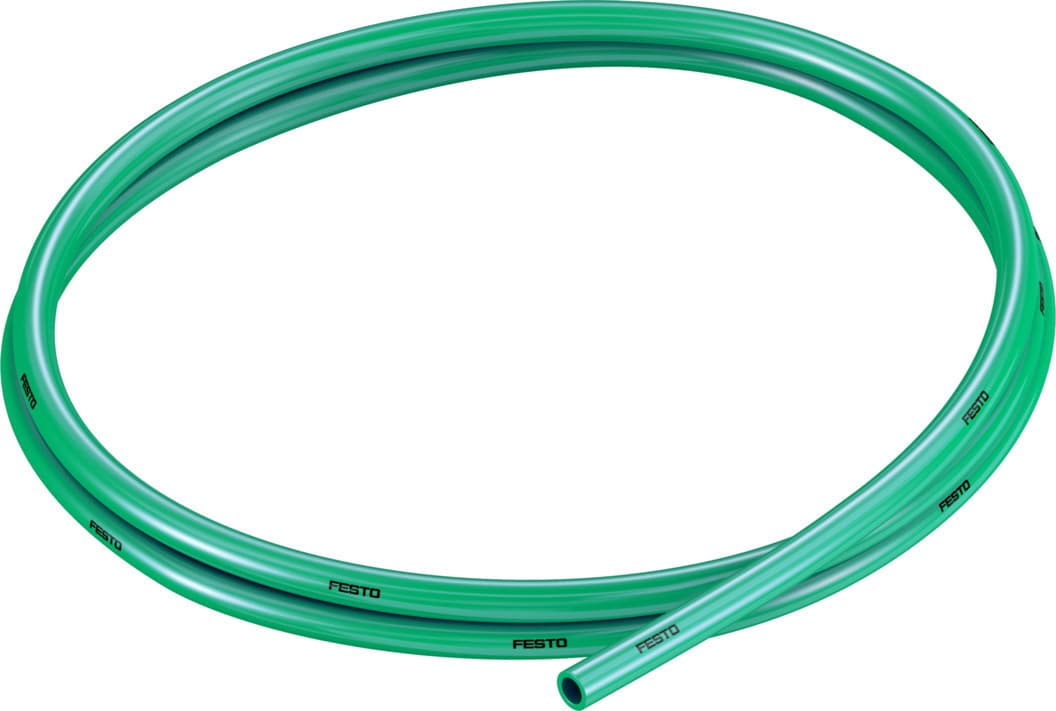

Festo PUN-V0-6X2-GN-C Plastic Tubing - High-Quality Pneumatic Tubing

Selling Points

1Flame Retardant Material: Made from flame retardant TPE-U(PU) material, ensuring safety in various applications.
2High Operating Pressure: Supports operating pressures up to 16 bar and temperature-dependent pressures up to 435 psi.
3Versatile Applications: Suitable for compressed air and water (liquid, ice-free), making it versatile for different pneumatic systems.
4German Technical Control Board (TÜV) Approval: Meets stringent safety standards with TÜV certification.
5RoHS-Compliant: Compliant with RoHS regulations, ensuring environmental sustainability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Outside diameter	6mm	Bending radius relevant for flow rate	24mm
Inside diameter	2mm	Min. bending radius	7mm
Tubing characteristics	Suitable for energy chains	Operating pressure for entire temperature range	-13.775psi 232psi
Temperature-dependent operating pressure	-13.775psi 435psi	Information on operating pressure	For applications with weld spatter: max. 1 MPa at 20 °C, max. 0.9 MPa at 40 °C, max. 0.7 MPa at 60 °C Water: max. 0.6 MPa at max. 50 °C
Certification	German Technical Control Board (TüV)	Certificate issuing authority	B 013277 0506 00
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)	Material fire test	UL94 V-0 (3mm) UL94 V-2 (0.75mm)
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-35°C 60°C
Note on ambient temperature	unpressurised use up to 90°C	Product weight by length	0.032kg/m
Pneumatic connection	For plug connection outside diameter 6 mm For barbed fitting, inside diameter 2 mm	Color	Green
Information on color	Deviates from the standard color due to flame protection	Shore hardness	D 54 +/-3
Note on materials	RoHS-compliant	Material of pneumatic tubing	TPE-U(PU)
Manufacturer ID	561706

Specifications may be subject to change without notice
