Product Model
pun-v0-8x1,25-bl
Selling Points

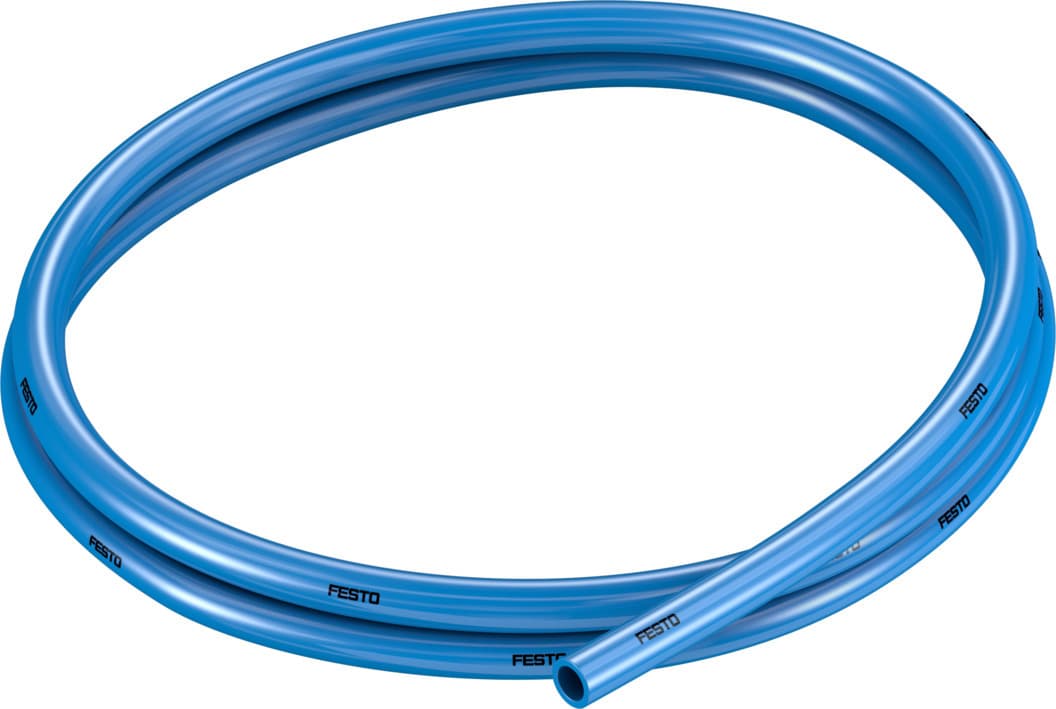

- 1The Festo PUN-V0-8X1,25-BL plastic tubing features an 8mm outside diameter and a 5.7mm inside diameter, making it perfect for energy chain applications.
- 2This tubing is suitable for both compressed air (ISO 8573-1:2010) and water, ensuring versatility in various pneumatic systems.
- 3With a flow-relevant bending radius of 37mm and a minimum bending radius of 18mm, it ensures smooth fluid flow and durability.
- 4The PUN-V0-8X1,25-BL is flame retardant, meeting UL94 V-0 (3mm) and UL94 V-2 (0.75mm) fire test standards, ensuring safety in high-temperature environments.
- 5This product is RoHS-compliant and made from TPE-U(PU) material, which is free of copper and PTFE, making it environmentally friendly and suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 8mm | Bending radius relevant for flow rate | 37mm |
Inside diameter | 5.7mm | Min. bending radius | 18mm |
Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 101.5psi |
Temperature-dependent operating pressure | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.031kg/m |
Pneumatic connection | For plug connection outside diameter 8 mm For barbed fitting, inside diameter 6 mm, with union nut For barbed fitting, inside diameter 6 mm | Color | Blue |
Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 525443 |
Specifications may be subject to change without notice
