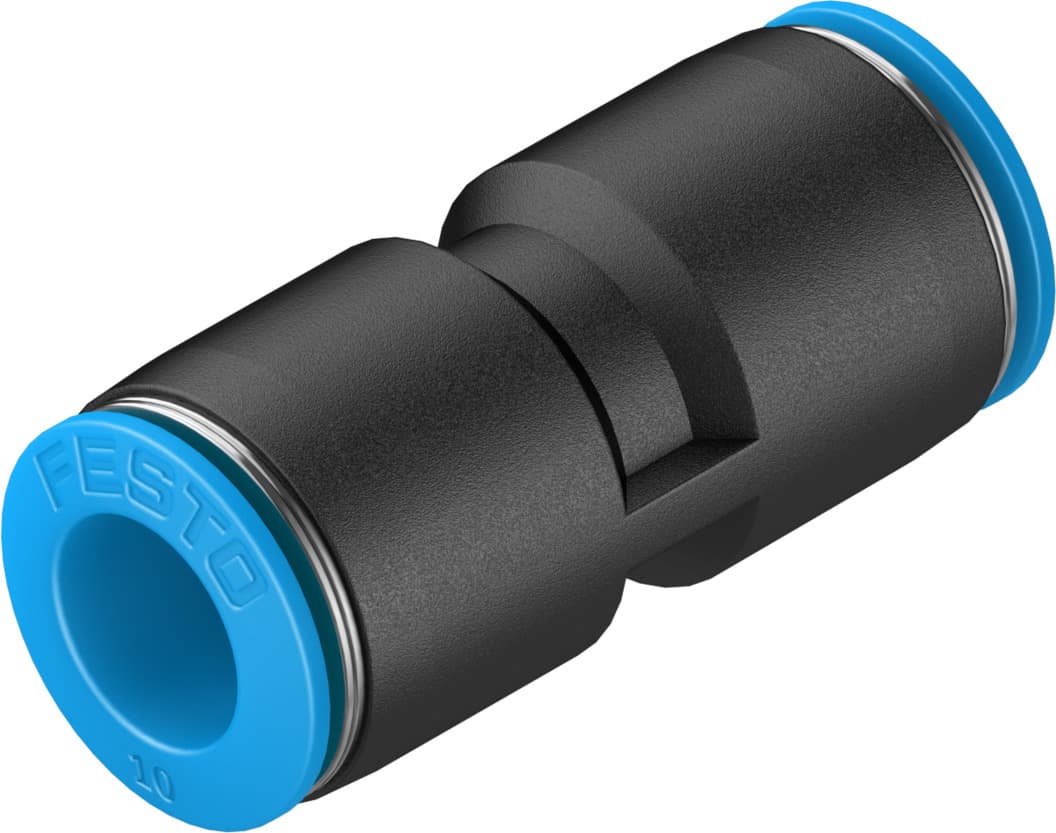

Festo QS-10-50 Push-in Connector - High-Quality Pneumatic Fittings

Selling Points

1The Festo QS-10-50 push-in connector features a robust design with a push-pull principle, ensuring reliable connections in various pneumatic systems.
2Suitable for compressed air and water, this connector operates within a temperature range of -10°C to 80°C, making it versatile for different industrial applications.
3With a corrosion resistance class of 1, the QS-10-50 is designed to withstand low corrosion stress, ensuring long-lasting performance in harsh environments.
4Available in a pack size of 50, this connector can be easily installed in any mounting position, providing flexibility in system setup.
5The QS-10-50 is RoHS-compliant and meets ISO 8573-1:2010 standards for compressed air, ensuring compliance with industry regulations.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	9mm
Mounting position	Any	Design	Straight design
Pack size	50	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	16g
Pneumatic connection 1	for pneumatic tubing outside diameter 10 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 10 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130689

Specifications may be subject to change without notice
