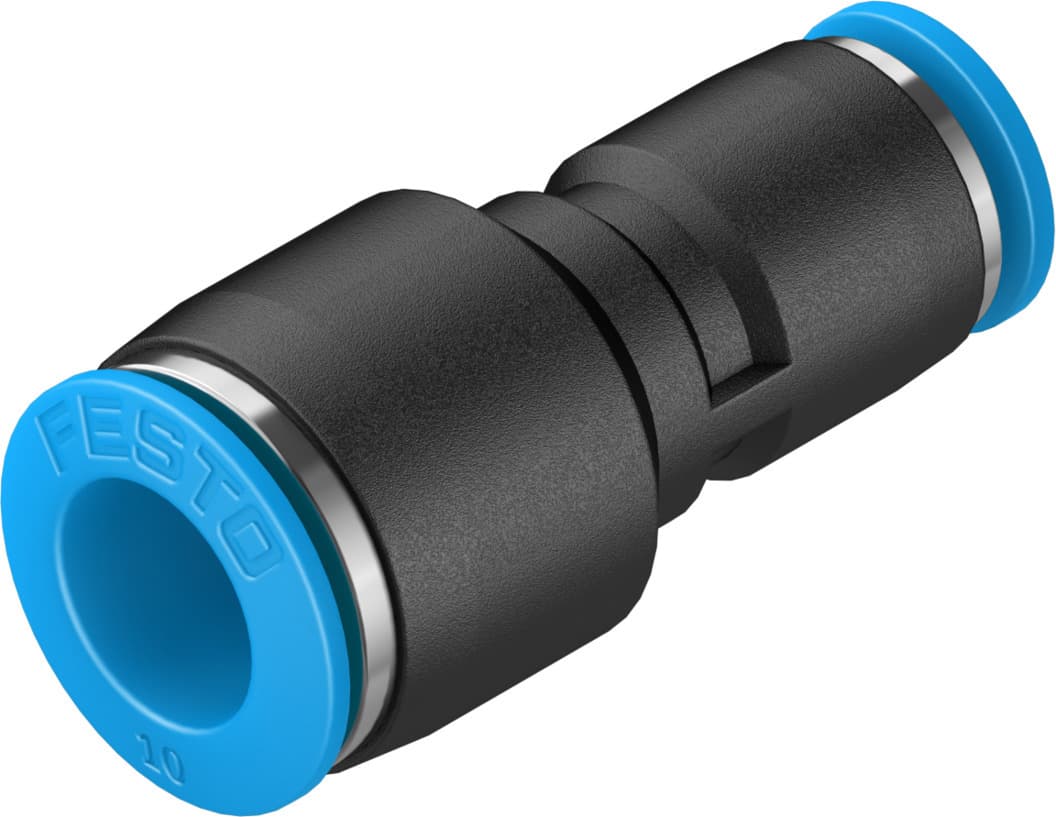

Festo QS-10-6 Pneumatic Fittings - High-Quality Push-In Connectors

Selling Points

1The Festo QS-10-6 pneumatic fittings are made from durable PBT (Polybutylene Terephthalate) and POM (Polyoxymethylene) materials, ensuring long-lasting performance and resistance to abrasion.
2These fittings can operate within a wide temperature range of -10°C to +80°C, making them suitable for various industrial applications.
3The push-pull design of the QS-10-6 fittings allows for effortless and quick installation, reducing setup time and increasing efficiency.
4With a corrosion resistance class of CRC 1, these fittings are designed to withstand low corrosion stress, ensuring reliability in harsh environments.
5The QS-10-6 is suitable for both compressed air and water applications, making it a versatile choice for a wide range of pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	4.3mm
Mounting position	Any	Design	Straight design
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	12g
Pneumatic connection 1	for pneumatic tubing outside diameter 10 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130607

Specifications may be subject to change without notice
