Product Model
qs-10h-6
Selling Points
- 1The Festo QS-10H-6 push-in connector features a standard size of 3.8 mm nominal diameter, making it versatile for various pneumatic applications.
- 2This connector operates within a wide temperature range of -10°C to 80°C and supports pressure up to 6 bar, ensuring reliability in diverse environments.

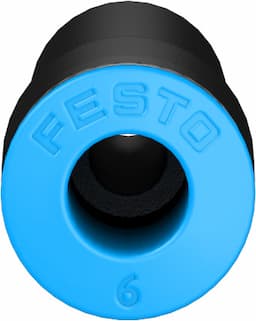

- 3The QS-10H-6 is designed with a push-pull principle, allowing for easy installation and operation. It also includes a blue release ring for visual confirmation.
- 4The connector is made from high-quality materials, including PBT for the body and POM for the release ring, ensuring durability and corrosion resistance.
- 5Suitable for both compressed air and water operations, this connector is compliant with ISO 8573-1:2010 and supports lubricated operation, enhancing its versatility and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.8mm |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 4.5g |

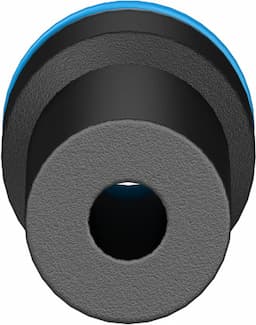

Pneumatic connection 1 | Push-in sleeve ? 10 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130623 |
Specifications may be subject to change without notice
