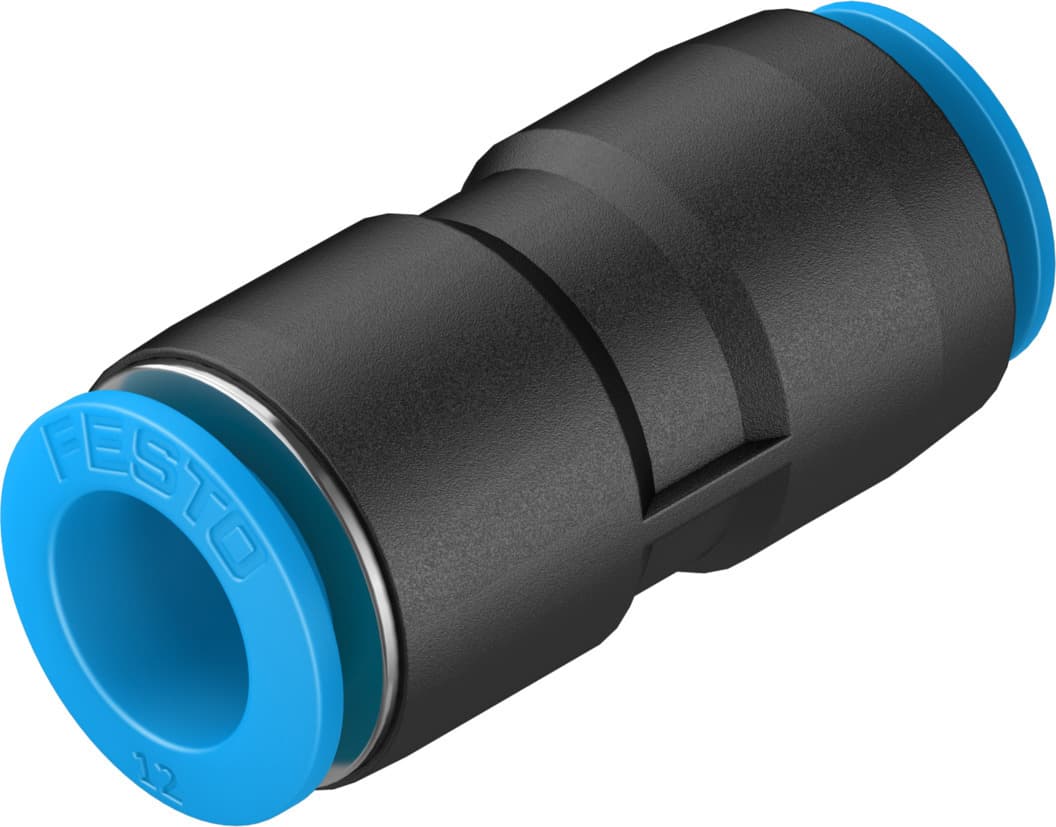

Product Model
qs-12-10-20
Selling Points
- 1The QS-12-10-20 push-in connector is designed with a standard size of 6.7 mm, allowing for versatile use in various pneumatic systems. Its mounting position is optional, making it easy to integrate into different setups.
- 2This connector operates on the push-pull principle, ensuring reliable and efficient connection and disconnection of pneumatic lines. This design principle enhances the overall performance and durability of the connector.
- 3The QS-12-10-20 supports an operating pressure range of -0.95 to 6 bar for compressed air and -0.95 to 14 bar for temperature-dependent applications. This wide range makes it suitable for various pneumatic tasks.
- 4The connector is made from RoHS-compliant materials, including PBT for the housing and POM for the release ring. It also features a low corrosion stress classification (CRC 1), ensuring reliability in different environments.
- 5The QS-12-10-20 is designed to work with compressed air according to ISO 8573-1:2010 and water as per manufacturer’s declaration. This makes it a versatile option for applications requiring both mediums.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 9mm |
Mounting position | Any | Design | Straight design |
Pack size | 20 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 21g |
Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130694 |
Specifications may be subject to change without notice
