Product Model
qs-1/2-10-50
Selling Points

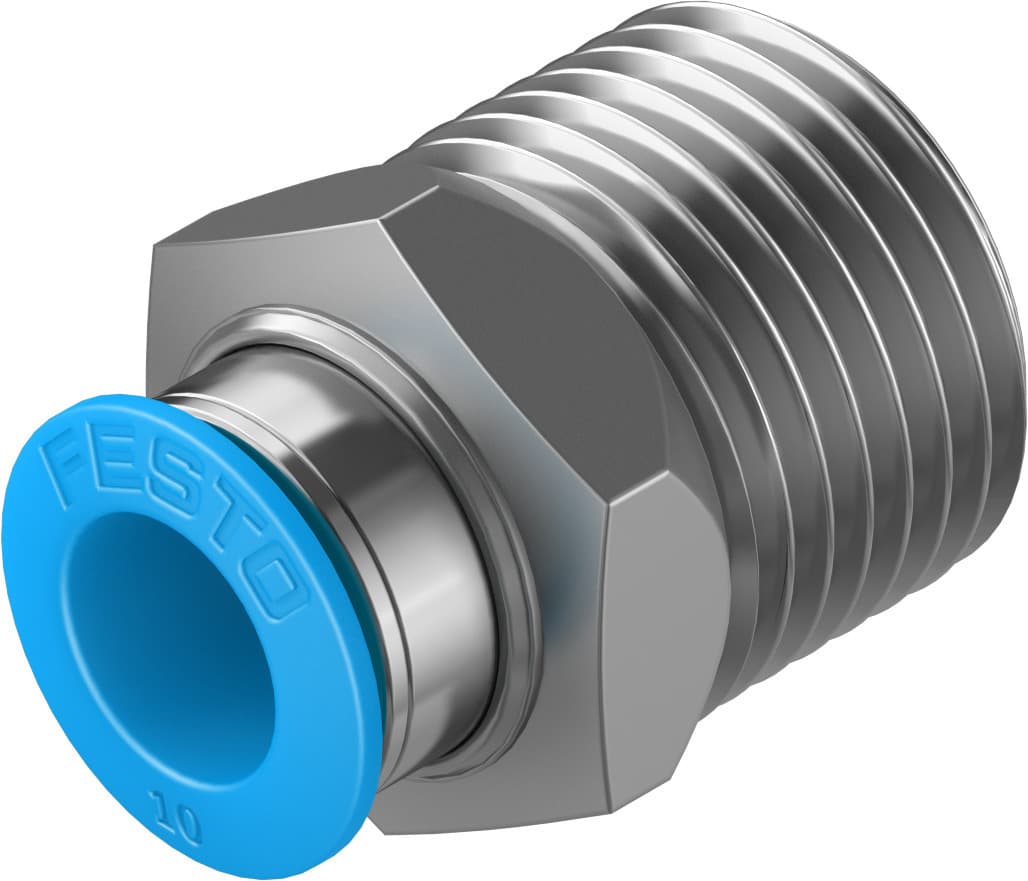

- 1The Festo QS-1/2-10-50 push-in fitting is designed with a straight design and a push-pull principle, ensuring easy and secure connections in pneumatic systems.
- 2This fitting features a nominal width of 9 mm and is available in packs of 50, making it ideal for bulk applications and reducing inventory management.
- 3The QS-1/2-10-50 is coated with a durable seal to protect against corrosion, ensuring long-lasting performance in various environments, including those with low to moderate corrosion stress.
- 4With an operating pressure range of -0.95 to 6 bar and a temperature range of -10 to 80°C, this fitting is versatile and suitable for a wide range of pneumatic applications.
- 5Constructed from high-quality materials such as brass with a nickel plating, POM, NBR, and high-alloy stainless steel, the QS-1/2-10-50 ensures reliability and durability in demanding conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 9mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 46g |
Type of mounting | External hexagon, AF 21 | Pneumatic connection 1 | External thread R1/2 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 133189 |
Specifications may be subject to change without notice
