Product Model
qs-1/2-12-i
Selling Points

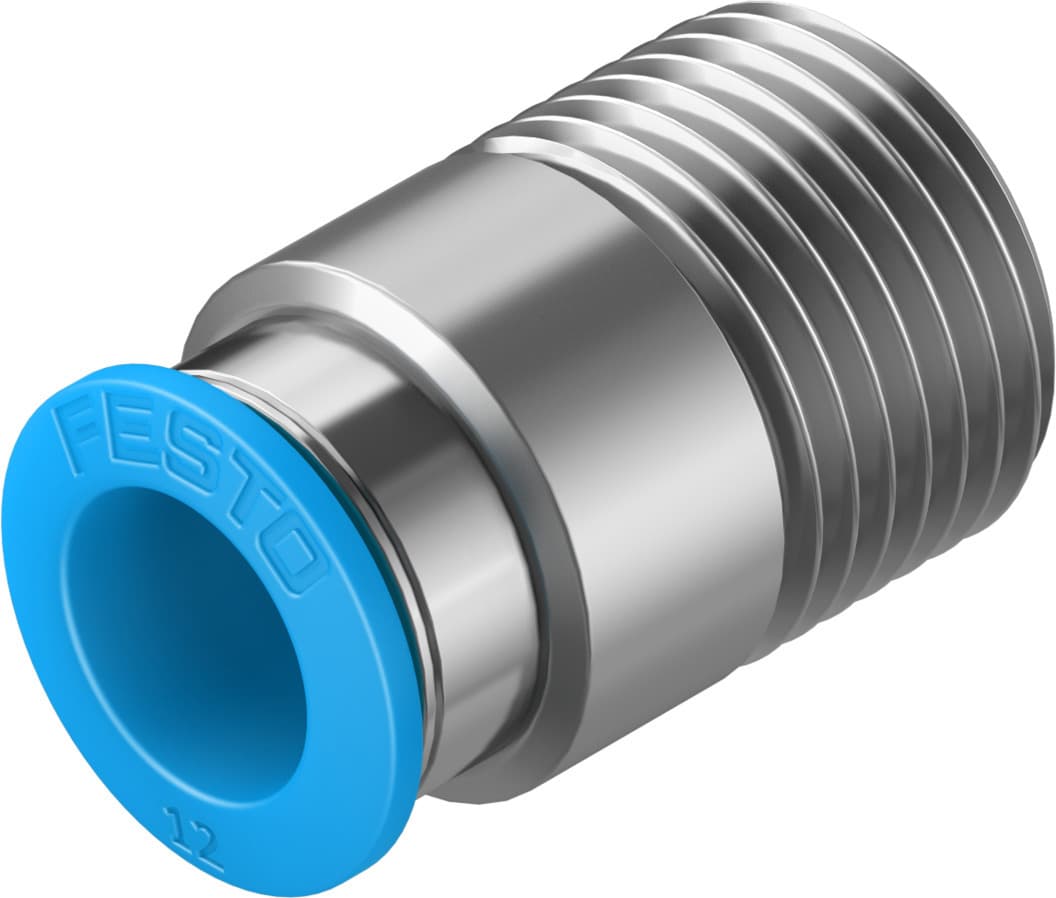

- 1The Festo QS-1/2-12-I push-in fitting is designed for standard pneumatic connections, ensuring easy and secure assembly with a sealing ring for reliable performance.
- 2This fitting features a straight design with a nominal size of 11 mm, making it versatile for various pneumatic applications. It is available in packs of one or twenty units.
- 3The QS-1/2-12-I is constructed from nickel-plated brass, providing durability and resistance to corrosion. The polymer collar ensures a secure connection.
- 4This push-in fitting supports operating pressures up to 10 bar (145.04 psi) and temperatures ranging from -10°C to 80°C (14°F to 176°F), making it suitable for a wide range of applications.
- 5The Festo QS-1/2-12-I is part of the QS series, known for its high-quality and reliable performance in pneumatic connection technology. It is ideal for use in various industries, including manufacturing and automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.4mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 26Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 45g |
Type of mounting | Internal hexagon, AF 8 | Pneumatic connection 1 | External thread R1/2 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153021 |
Specifications may be subject to change without notice
