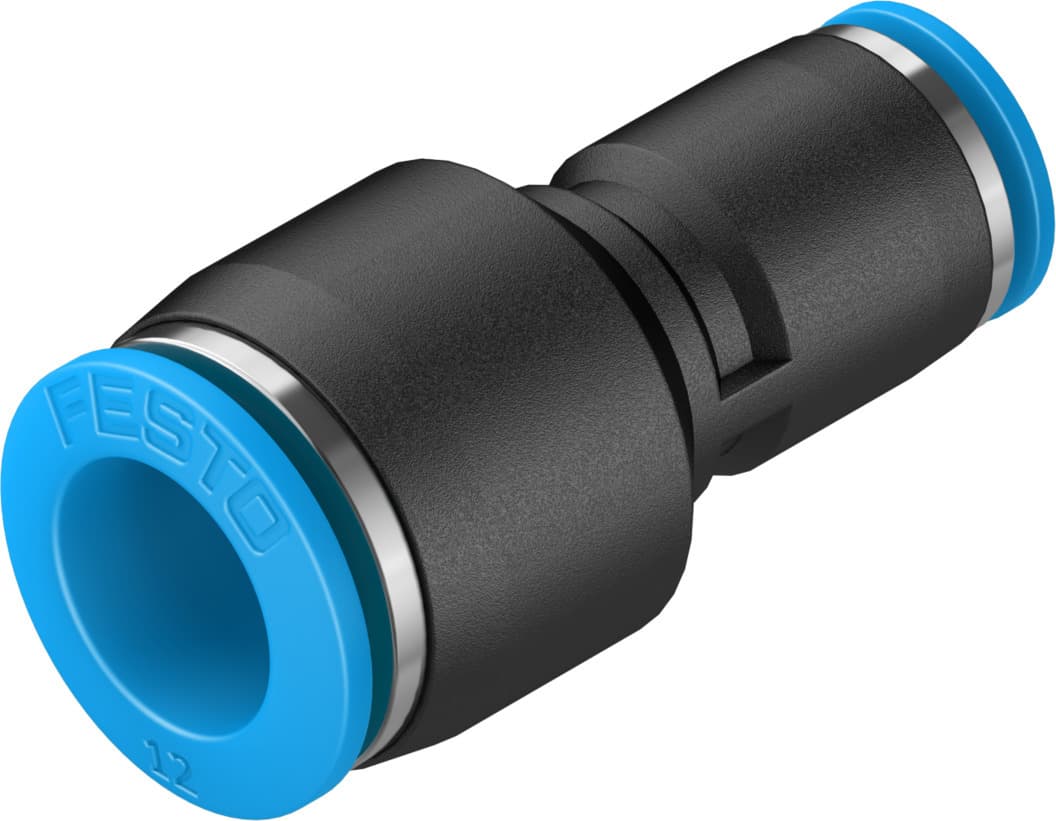

Festo QS-12-8 Push-In Connector: High-Quality Pneumatic Fitting

Selling Points

1The Festo QS-12-8 push-in connector is designed for use with compressed air and water, making it a versatile choice for various industrial applications.
2With a nominal size of 5.2 mm, this connector fits standard tubing sizes, ensuring easy integration into existing systems.
3The push-pull principle design allows for quick and secure connections, reducing the risk of leaks and ensuring reliable operation.
4Classified as CRC 1, this connector exhibits low corrosion stress, making it suitable for use in environments with moderate exposure to moisture or chemicals.
5The QS-12-8 operates within a temperature range of -10°C to 80°C and supports pressures up to 14 bar, providing a wide operating envelope for various conditions.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	6.2mm
Mounting position	Any	Design	Straight design
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	16g
Pneumatic connection 1	for pneumatic tubing outside diameter 12 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 8 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130608

Specifications may be subject to change without notice
