Product Model

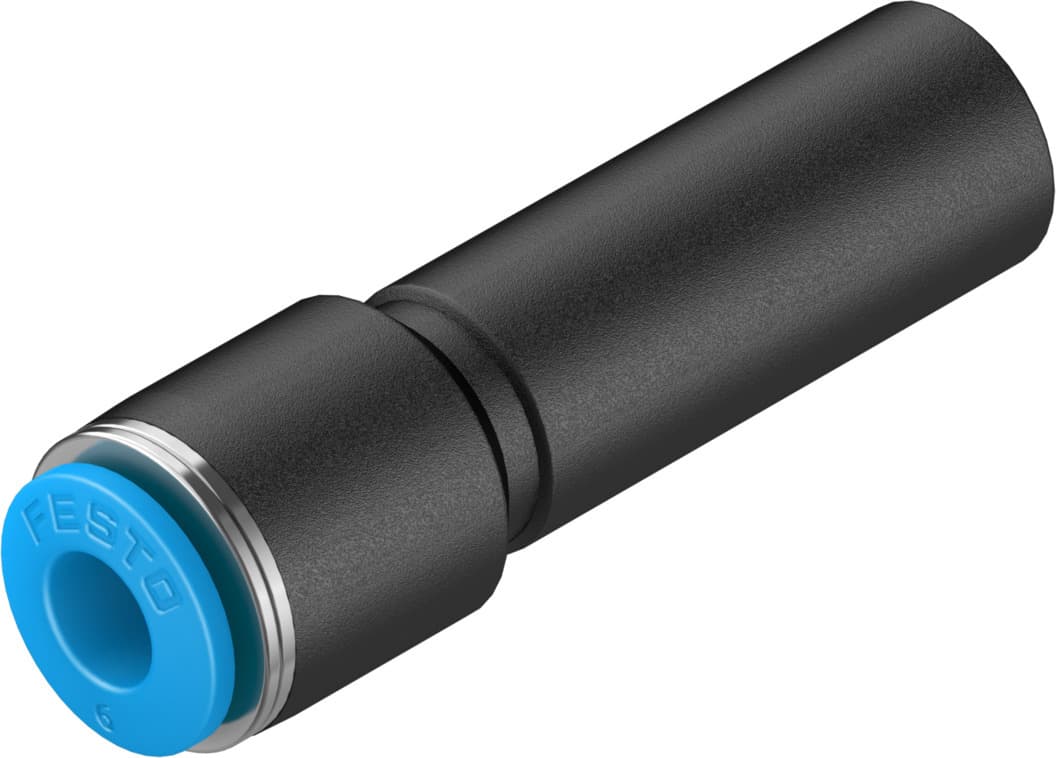

qs-12h-6
Selling Points
- 1The Festo QS-12H-6 offers a reliable push-in connector for pneumatic systems, ensuring secure and efficient connections.
- 2With a push-in sleeve Ø 12 mm and tubing outside diameter of 6 mm, this connector is ideal for compact pneumatic setups.
- 3The QS-12H-6 operates within a range of -0.95 to 6 bar, making it suitable for various pneumatic applications.
- 4Featuring a corrosion resistance class of CRC 1, this connector is designed to withstand low corrosion stress, ensuring durability.
- 5The QS-12H-6 meets cleanroom class 4 according to ISO 14644-1, making it suitable for use in controlled environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Product weight | 6g | Pneumatic connection 1 | Push-in sleeve ? 12 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132981 |
Specifications may be subject to change without notice
