Product Model
qs-12h-8
Selling Points

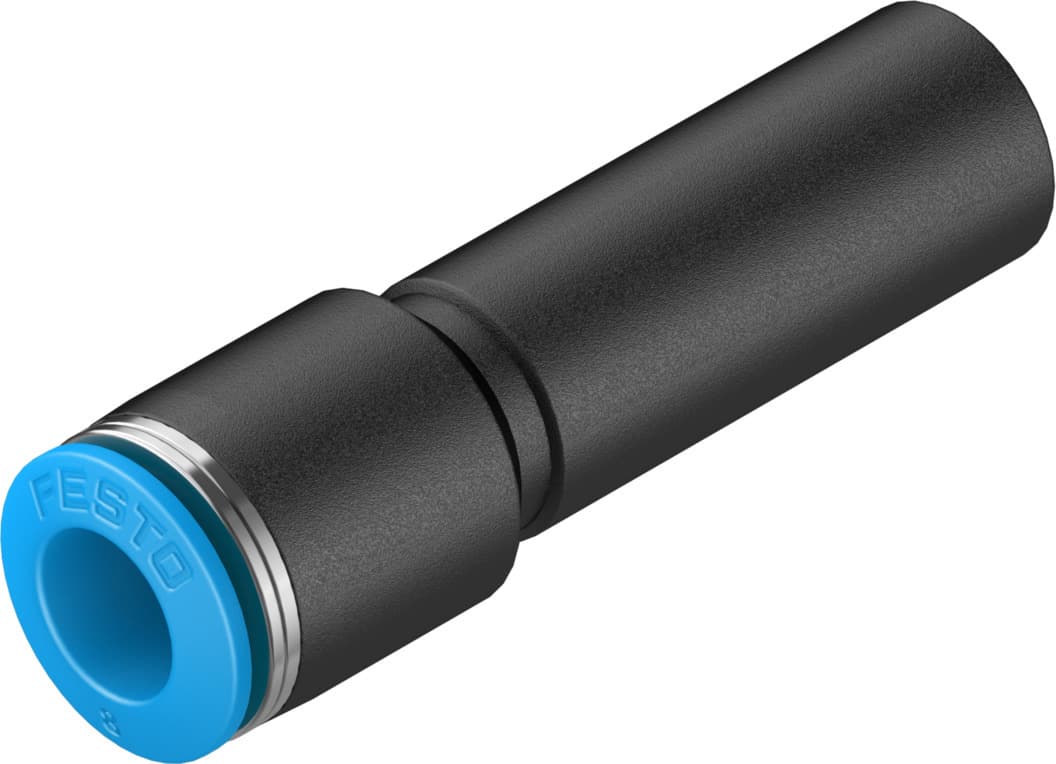

- 1The Festo QS-12H-8 push-in connector is designed with a push-pull principle, ensuring easy and secure connections. It is available in a standard size with a nominal diameter of 5.4 mm.
- 2This fitting is suitable for various assembly positions and can handle operating pressures up to 14 bar, making it versatile for different pneumatic applications.
- 3The QS-12H-8 is RoHS compliant, ensuring it meets environmental standards. It also features a low corrosion stress rating, making it suitable for use in various environments.
- 4The connector is designed for use with compressed air according to ISO 8573-1:2010 and can also operate with water as per manufacturer’s declaration.
- 5The product includes a push-in sleeve with a diameter of 12 mm and is compatible with tubing outside diameters of up to 8 mm, providing a secure fit for pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.4mm |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 6.7g |

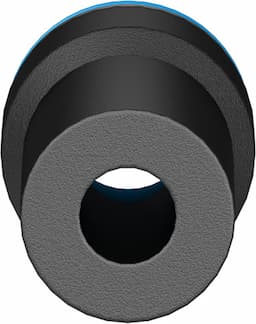

Pneumatic connection 1 | Push-in sleeve ? 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |

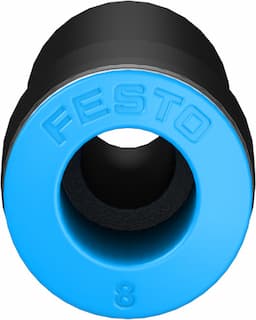

Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130624 |
Specifications may be subject to change without notice
