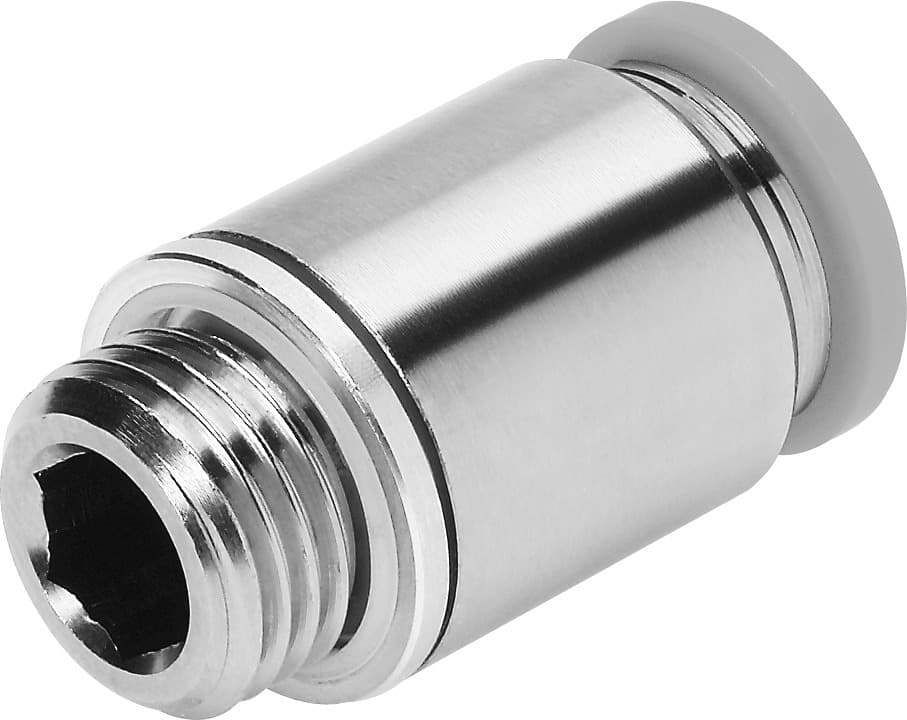

Festo QS-1/4-1/4-I-U-M Push-in Fitting | High-Quality Pneumatic Connector

Selling Points

1The Festo QS-1/4-1/4-I-U-M push-in fitting is designed with a straight, male thread and internal hexagon socket for secure connections.
2This fitting features a nickel-plated brass material, ensuring durability and resistance to corrosion in various industrial environments.
3The QS-1/4-1/4-I-U-M fitting supports operating pressures up to 145 psi and temperatures from -10°C to 80°C, making it suitable for a wide range of applications.
4The push-in fitting is ISO 8573-1:2010 compliant and RoHS compliant, ensuring it meets international standards for quality and environmental safety.
5Available in packs of one, the QS-1/4-1/4-I-U-M fitting is easy to install and maintain, reducing downtime and increasing overall efficiency in your industrial setup.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	4.191mm
Type of seal on screwed plug	Coating	Mounting position	Any
Design	Straight design	Pack size	1
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 145psi
Maritime classification	See certificate	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	0°C 60°C
Product weight	11.992g	Type of mounting	Internal hexagon, AF 4
Pneumatic connection 1	External thread R1/4	Pneumatic connection 2	for pneumatic tubing outer diameter 1/4"
Ambient temperature Fahrenheit	32°F 140°F	Releasing ring color	Gray
Note on materials	RoHS-compliant	Housing material	Brass Nickel-plated
Releasing ring material	POM	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	192809

Specifications may be subject to change without notice
