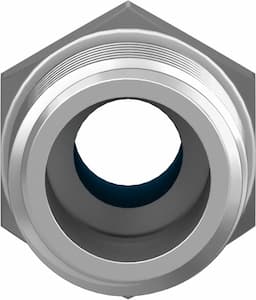

Product Model
qs-1/4-6-100
Selling Points

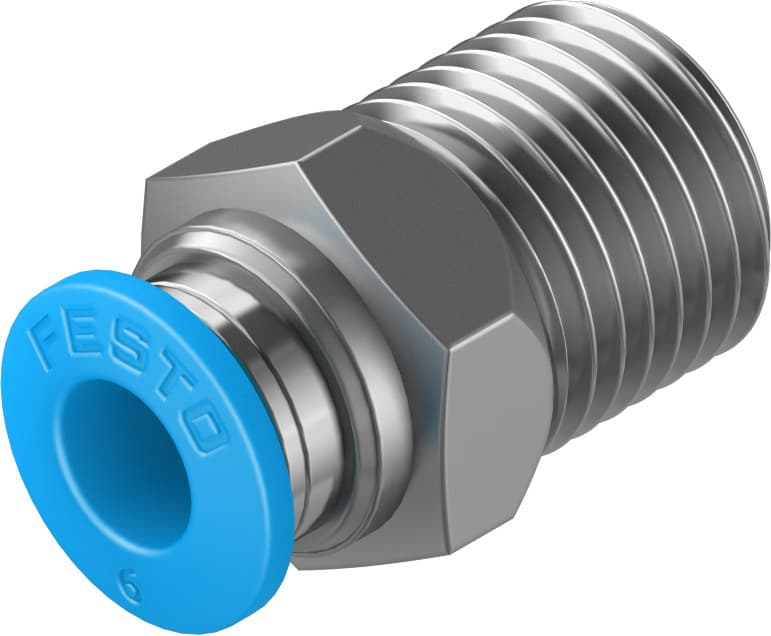

- 1The QS-1/4-6-100 is made from brass with a nickel-plated body, ensuring durability and corrosion resistance. The POM release ring and NBR tubing seal provide additional reliability.
- 2This fitting supports operating pressures from -0.95 to 6 bar and temperature-dependent pressures up to 14 bar, making it suitable for various pneumatic applications.
- 3The push-pull design and optimized bending radius make installation quick and effortless, reducing installation time and effort.
- 4The QS-1/4-6-100 is compatible with the PEN, PUN, and PAN series, offering flexibility in system design and integration.
- 5With a high level of abrasion resistance in dynamic applications, this fitting ensures reliable performance even in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 15g | Type of mounting | External hexagon, AF 14 |
Pneumatic connection 1 | External thread R1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130677 |
Specifications may be subject to change without notice
