Product Model
qs-1/8-4-100
Selling Points

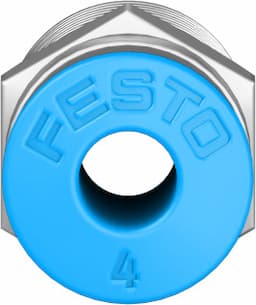

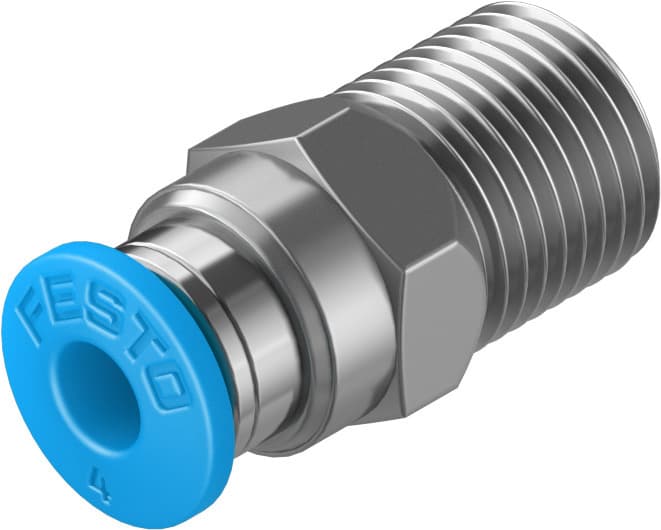

- 1The Festo QS-1/8-4-100 push-in fitting is designed for use with compressed air and vacuum, making it versatile for various pneumatic applications.
- 2This fitting features a coating seal type on the stud, ensuring reliable operation and minimizing leakage.
- 3With a nominal width of 3.0 mm and a hose exterior diameter of 4 mm, it offers a compact and efficient connection solution.
- 4The QS-1/8-4-100 operates within a temperature range of -10°C to 80°C and supports pressures up to 14 bar, making it suitable for a wide range of environments.
- 5Constructed from brass and nickel-plated materials, this fitting is corrosion-resistant and RoHS compliant, ensuring durability and environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 7.4g | Type of mounting | External hexagon, AF 10 |
Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130674 |
Specifications may be subject to change without notice
