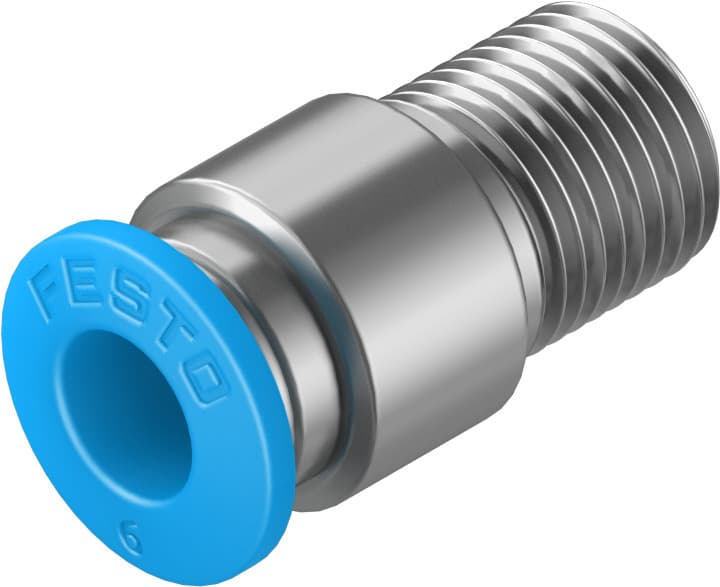

Festo QS-1/8-6-I-100 Push-in Fitting: High-Quality Pneumatic Connection

Selling Points

1Reliable Pneumatic Connection: The Festo QS-1/8-6-I-100 push-in fitting ensures a secure and leak-free connection, perfect for various industrial applications.
2Temperature Range: Operates effectively within a temperature range of -10°C to 80°C, making it suitable for diverse environmental conditions.
3Low Corrosion Stress: Classified as CRC 1, this fitting exhibits low corrosion stress, ensuring durability and longevity in harsh environments.
4Versatile Installation: Can be installed in any position, offering flexibility in system design and integration.
5High-Quality Materials: Constructed from brass and nickel-plated housing, POM sleeve, and NBR tube seal, ensuring high performance and reliability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	4.2mm
Type of seal on screwed plug	Coating	Mounting position	Any
Design	Straight design	Pack size	100
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	7.6g
Type of mounting	Internal hexagon, AF 4	Pneumatic connection 1	External thread R1/8
Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm	Releasing ring color	Blue
Note on materials	RoHS-compliant	Housing material	Brass, nickel-plated
Releasing ring material	POM	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	133186

Specifications may be subject to change without notice
