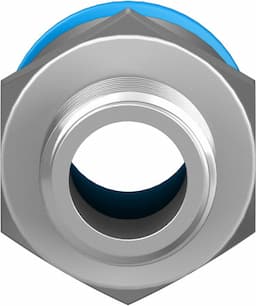

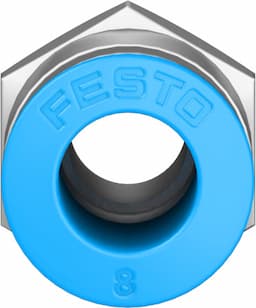

Product Model
qs-1/8-8-50
Selling Points
- 1The Festo QS-1/8-8-50 push-in fitting ensures a secure and reliable connection for pneumatic systems, making it perfect for various industrial applications.
- 2This fitting operates within a wide temperature range of -10°C to 80°C and supports pressures from -0.95 to 6 bar, making it suitable for diverse environments.
- 3Constructed from brass with a nickel-plated housing and POM release ring, the QS-1/8-8-50 offers low corrosion stress, ensuring long-lasting performance.
- 4Featuring a push-pull principle and available in a pack of 50, this fitting is easy to install and maintain, reducing downtime in your production line.
- 5The QS-1/8-8-50 meets ISO 8573-1:2010 for compressed air and is RoHS compliant, ensuring it adheres to the highest industry standards for quality and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 14g | Type of mounting | External hexagon, AF 14 |
Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130676 |
Specifications may be subject to change without notice
