Product Model
qs-3/8-10-i
Selling Points

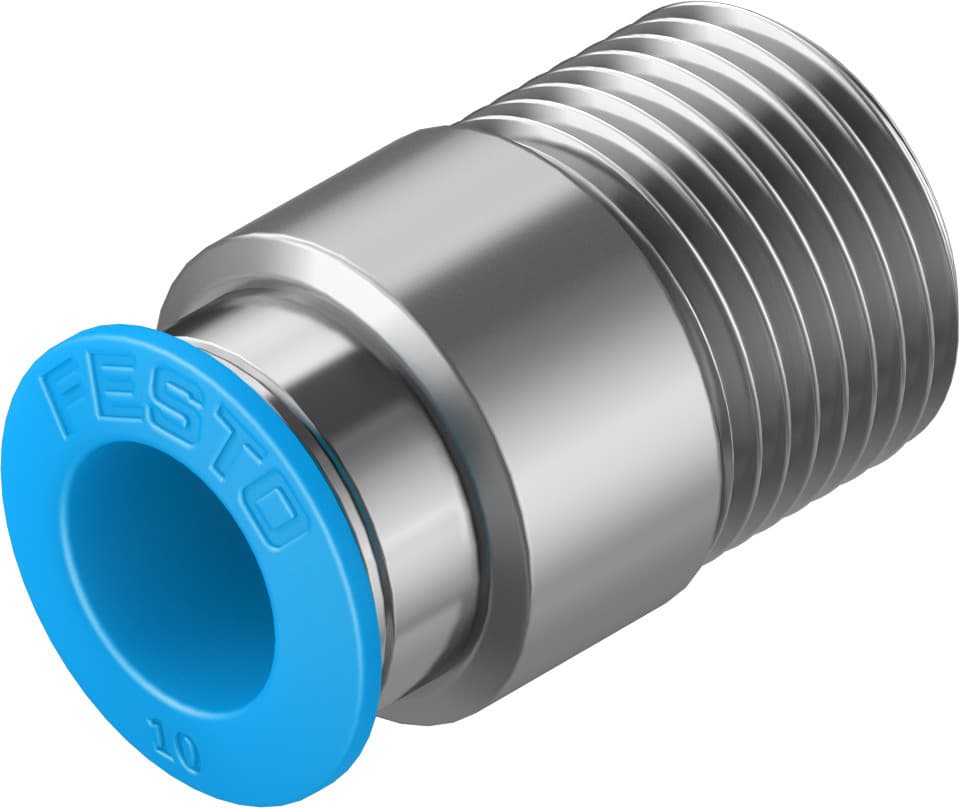

- 1The Festo QS-3/8-10-I is a high-quality push-in fitting designed for pneumatic systems, ensuring reliable connections and efficient airflow.
- 2This fitting features a straight design and is available in packs of 10, making it convenient for bulk purchases and easy to integrate into your setup.
- 3The QS-3/8-10-I offers a nominal width of 6.3 mm, providing a compact yet robust solution for your pneumatic applications.
- 4With its coating and seal on the screwed plug, this fitting ensures a secure and durable connection, minimizing the risk of leaks or damage.
- 5The QS-3/8-10-I can be mounted in any position, offering flexibility and ease of use in various industrial settings and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 15.5Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 26g |
Type of mounting | Internal hexagon, AF 6 | Pneumatic connection 1 | External thread R3/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153019 |
Specifications may be subject to change without notice
