Product Model
qs-3/8-12-20
Selling Points

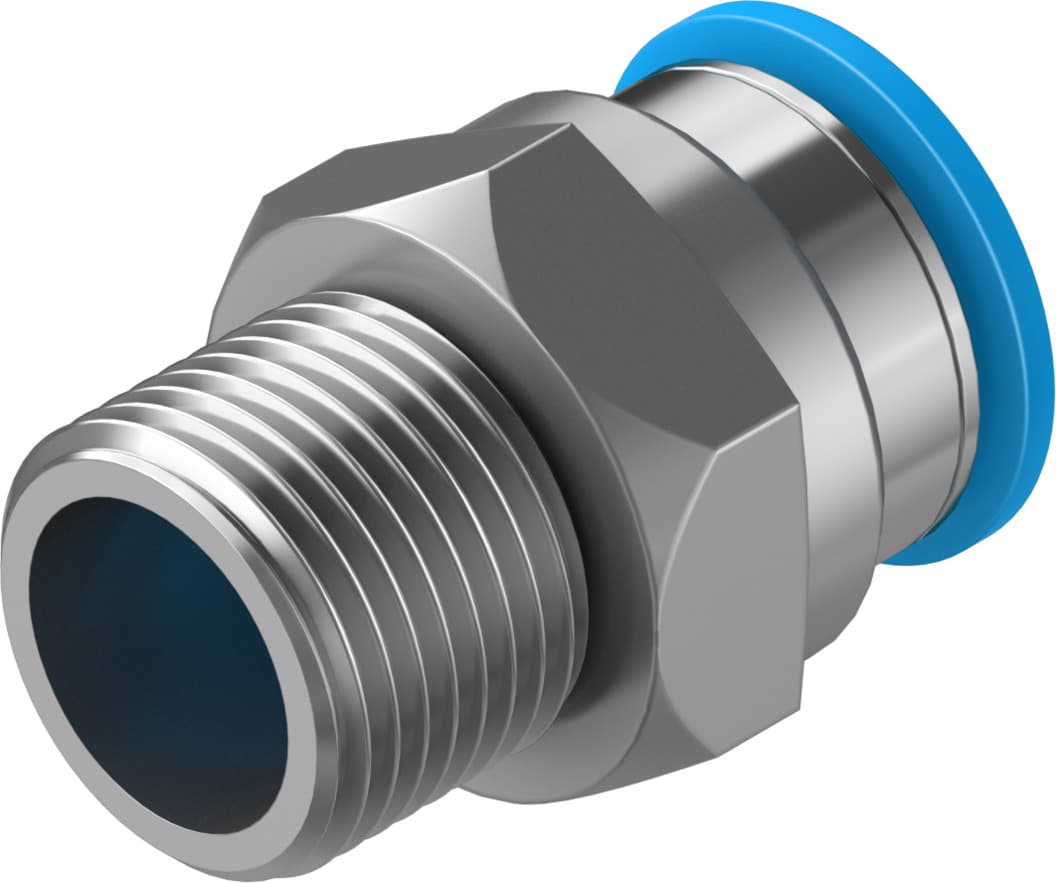

- 1The Festo QS-3/8-12-20 is a high-quality, straight-threaded pneumatic fitting designed for reliable connections. It features a 3/8 inch BSPT (R) male port and a 12mm push-in metric port, ensuring secure and efficient pneumatic systems.
- 2This fitting is made from nickel-plated brass, providing excellent durability and resistance to corrosion. The polymer collar ensures a tight seal, making it suitable for a wide range of pneumatic applications.
- 3The QS-3/8-12-20 operates within a temperature range of -10 to 80°C (14 to 176°F), making it versatile for various industrial environments. It supports operating pressures up to 10 bar (145.04 psi), ensuring reliable performance under pressure.
- 4The fitting comes in a standard size with a nominal size of 11mm and is available in packs of 20 units. Its straight design allows for easy installation and maintenance, reducing downtime in your pneumatic system.
- 5The Festo QS-3/8-12-20 is part of Festo's renowned QS series, known for its high-quality pneumatic fittings. It is designed to meet the demands of modern industrial automation, ensuring precise and reliable connections in your pneumatic setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 11mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 20 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 30g | Type of mounting | External hexagon, AF 21 |
Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130683 |
Specifications may be subject to change without notice
