Product Model
qs-3/8-16
Selling Points

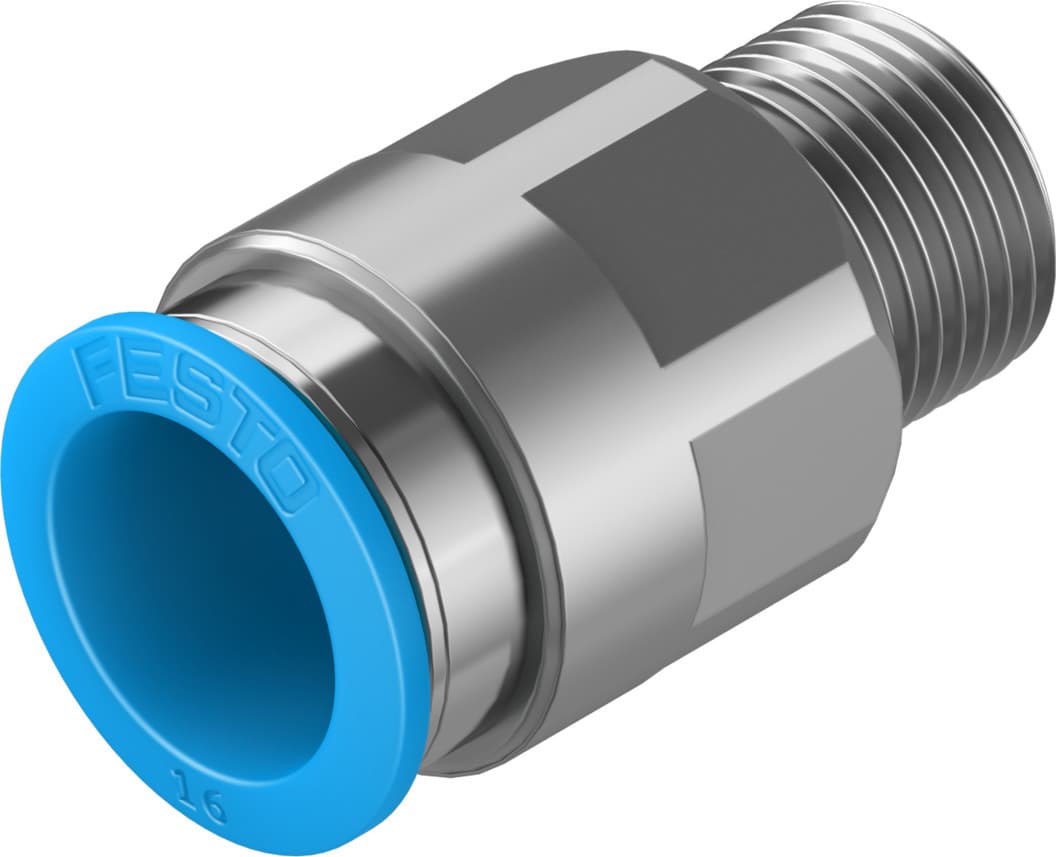

- 1The Festo QS-3/8-16 push-in fitting features a standard size with a nominal width of 11 mm, ensuring compatibility with various pneumatic systems.
- 2This fitting boasts a coating seal on the screw-in stud, providing excellent protection against corrosion and ensuring reliable performance in a wide range of environments.
- 3With its straight design and push/pull principle, the QS-3/8-16 is easy to assemble and disassemble, making it ideal for applications requiring frequent connection changes.
- 4The fitting operates within a temperature range of -10 to 80°C and supports pressures up to 6 bar, making it suitable for a variety of industrial applications.
- 5Constructed from nickel-plated brass, the QS-3/8-16 offers high corrosion resistance and durability, ensuring long-lasting performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 11mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 15.5Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 50g |
Type of mounting | External hexagon, AF 22 | Pneumatic connection 1 | External thread R3/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 16 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 164957 |
