Product Model

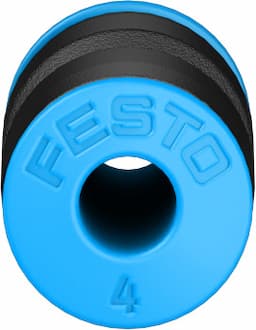

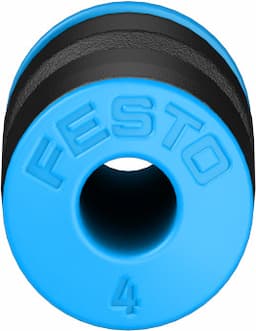

qs-4-100
Selling Points
- 1The Festo QS-4-100 push-in connector ensures secure and efficient pneumatic connections, ideal for various industrial applications.
- 2With a nominal size of 2.6 mm, this connector fits standard pneumatic tubing, making it versatile and easy to use.
- 3The QS-4-100 features a push-pull principle design, allowing for easy assembly and disassembly without the need for tools.
- 4Classified as CRC 1, this connector has low corrosion stress, ensuring durability in various environments.
- 5The QS-4-100 meets ISO 8573-1:2010 standards for compressed air and is also suitable for water use as per manufacturer's declaration at www.festo.com.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.8mm |
Mounting position | Any | Design | Straight design |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 4.7g |
Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130686 |
Specifications may be subject to change without notice
