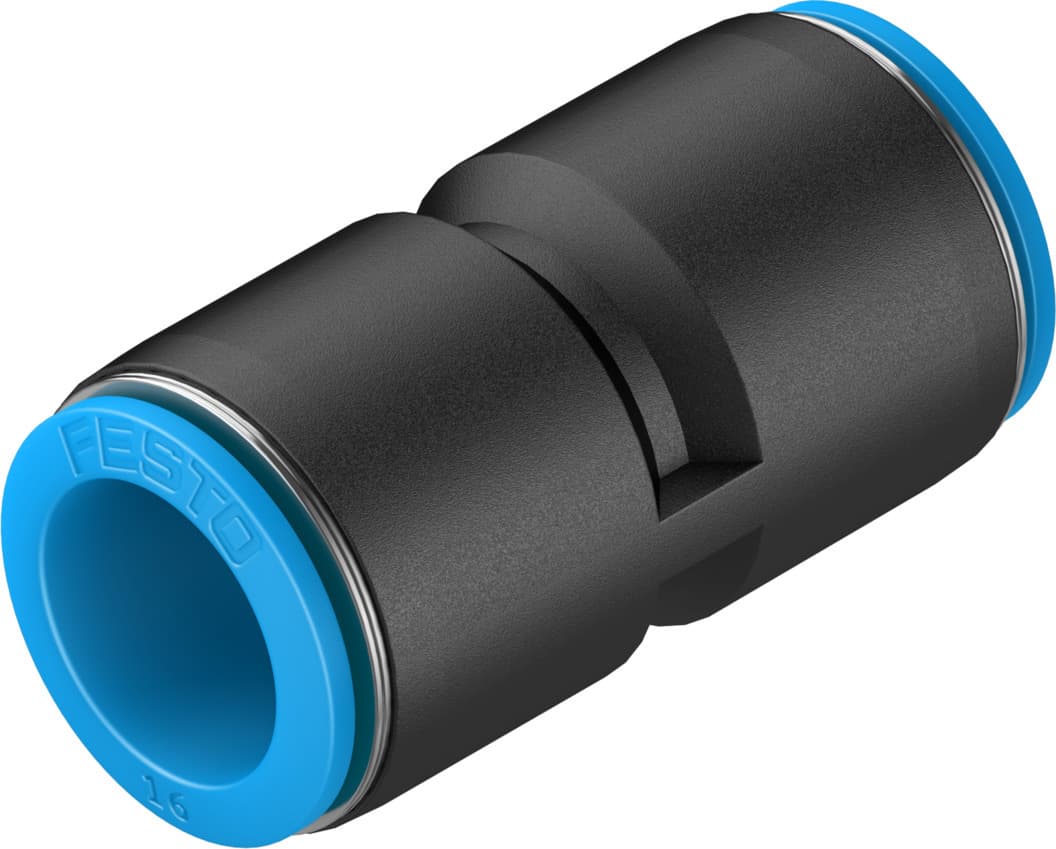

Product Model
qs-5/8t-u
Selling Points
- 1Standard Size and Design: 10.7 mm nominal size with a straight design.
- 2Versatile Mounting: Optional mounting position for flexible installation.
- 3High Operating Pressure: Compatible with operating pressures from -0.95 to 10 bar.
- 4Corrosion Resistance: Low corrosion stress with CRC classification 1.
- 5Durable Materials: Made from PBT housing, POM release ring, and NBR tubing seal.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 13mm |
Mounting position | Any | Design | Straight design |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Product weight | 26g |
Pneumatic connection 1 | For pneumatic tubing outside diameter 5/8" | Pneumatic connection 2 | for pneumatic tubing outside diameter 5/8" |
Ambient temperature Fahrenheit | 14°F 140°F | Releasing ring color | Gray |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 190589 |
Specifications may be subject to change without notice
