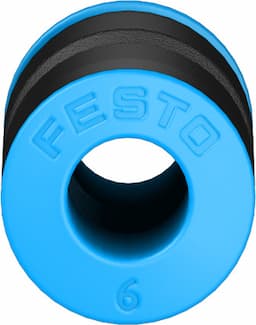

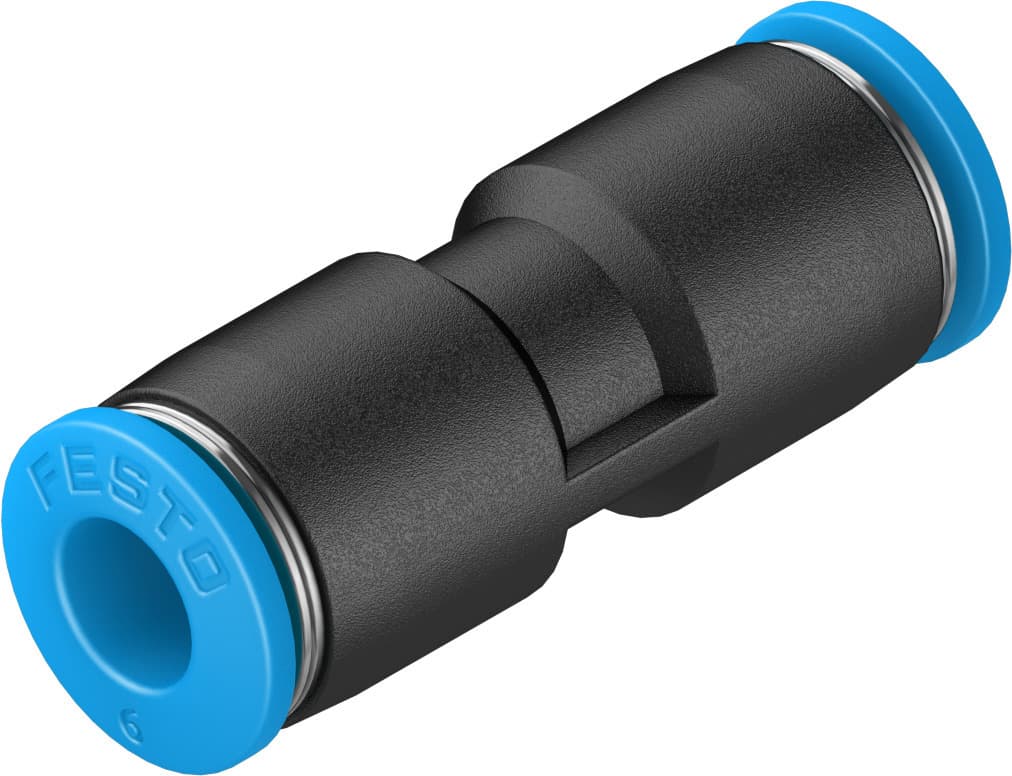

Festo QS-6-100 Push-in Connector - High-Quality Pneumatic Fittings

Selling Points

1The Festo QS-6-100 push-in connector ensures secure and leak-free connections for compressed air and water applications, making it ideal for various industrial settings.
2With a standard size of 4.3 mm and a push-pull principle, this connector can be mounted in any position, offering flexibility in installation.
3Capable of withstanding operating pressures from -0.95 to 6 bar and temperature-dependent pressures up to 14 bar, it is suitable for demanding applications.
4Classified as CRC 1, this connector has low corrosion stress, ensuring durability in harsh environments.
5Made from RoHS-compliant PBT housing and POM release ring, it meets environmental standards and is suitable for use in cleanroom environments (Class 4 according to ISO 14644-1).

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	4.3mm
Mounting position	Any	Design	Straight design
Pack size	100	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	6.5g
Pneumatic connection 1	For pneumatic tubing outside diameter 6 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130687

Specifications may be subject to change without notice
