Product Model

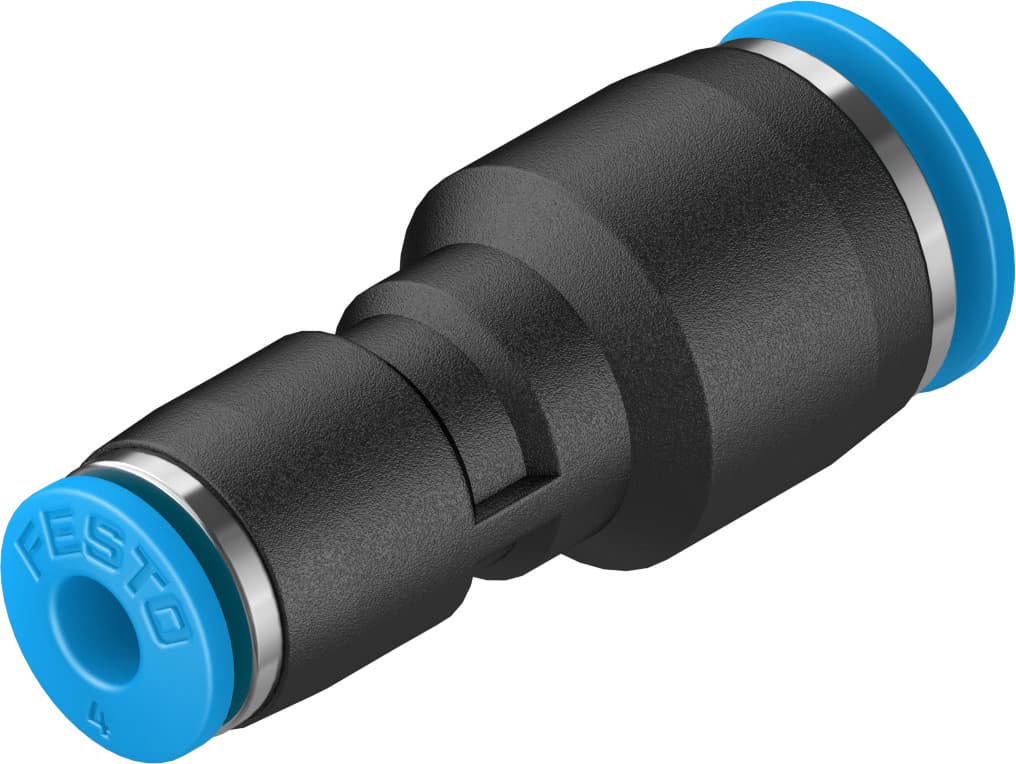

qs-8-4
Selling Points
- 1The QS-8-4 is made from PBT (Polybutylene Terephthalate), ensuring durability and resistance to corrosion.
- 2This push-in connector features a straightforward push-pull principle, making it simple to install and use.
- 3The QS-8-4 operates within a pressure range of -0.95 to 6 bar, suitable for various pneumatic applications.
- 4With a nominal width of 2.3 mm, this connector is ideal for applications requiring minimal space.
- 5The QS-8-4 meets ISO 8573-1:2010 for compressed air and is RoHS-compliant, ensuring it meets international quality standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.8mm |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 7.2g |
Pneumatic connection 1 | for pneumatic tubing outside diameter 8 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130606 |
Specifications may be subject to change without notice
