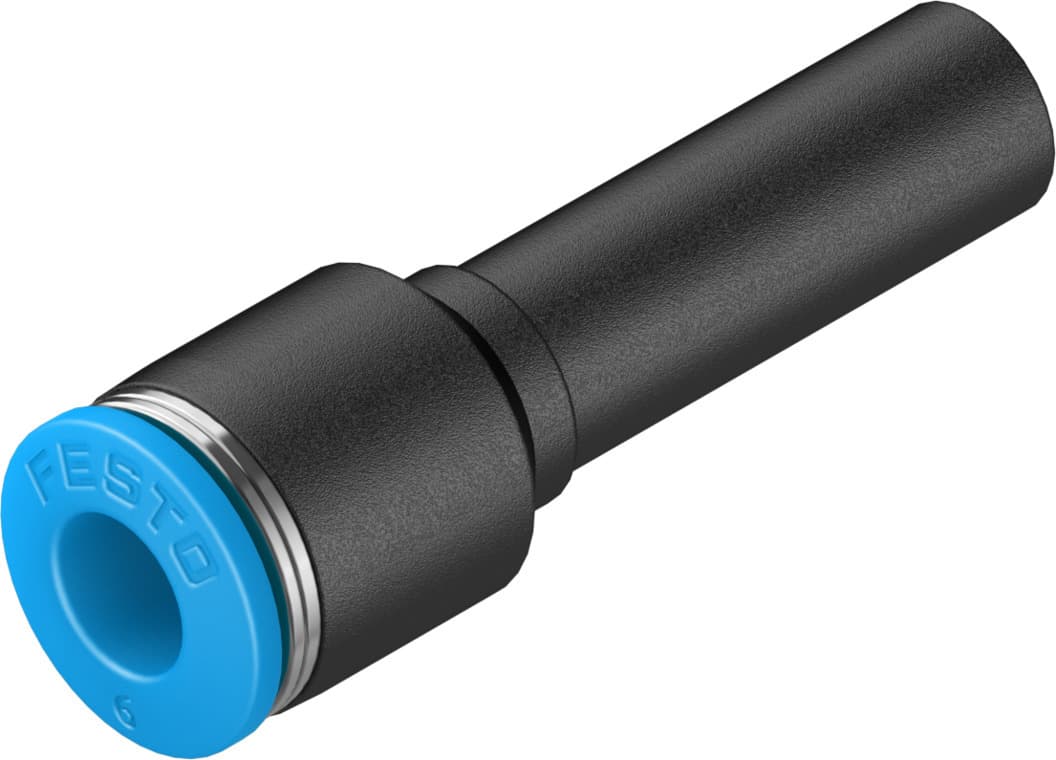

Product Model
qs-8h-6-50
Selling Points
- 1High-Quality Material: The Festo QS-8H-6-50 is made from durable PBT housing and POM release ring, ensuring long-lasting performance in pneumatic applications.
- 2Easy Installation: This push-in connector features a straightforward push-pull principle, making it simple to connect and disconnect tubing without tools.
- 3Versatile Design: With a nominal size of 3.8 mm and a straight design, the QS-8H-6-50 is compatible with various pneumatic systems and tubing sizes.
- 4Corrosion Resistance: The connector is designed with a low corrosion stress (CRC 1) and meets VDMA24364-B1/B2-L standards, ensuring reliability in harsh environments.
- 5Operational Flexibility: The QS-8H-6-50 operates within a temperature range of -10 °C to 80 °C and supports lubricated operation, making it suitable for a wide range of applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.8mm |
Mounting position | Any | Design | Straight design |
Pack size | 50 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 4g |
Pneumatic connection 1 | Push-in sleeve ? 8 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130696 |
Specifications may be subject to change without notice
